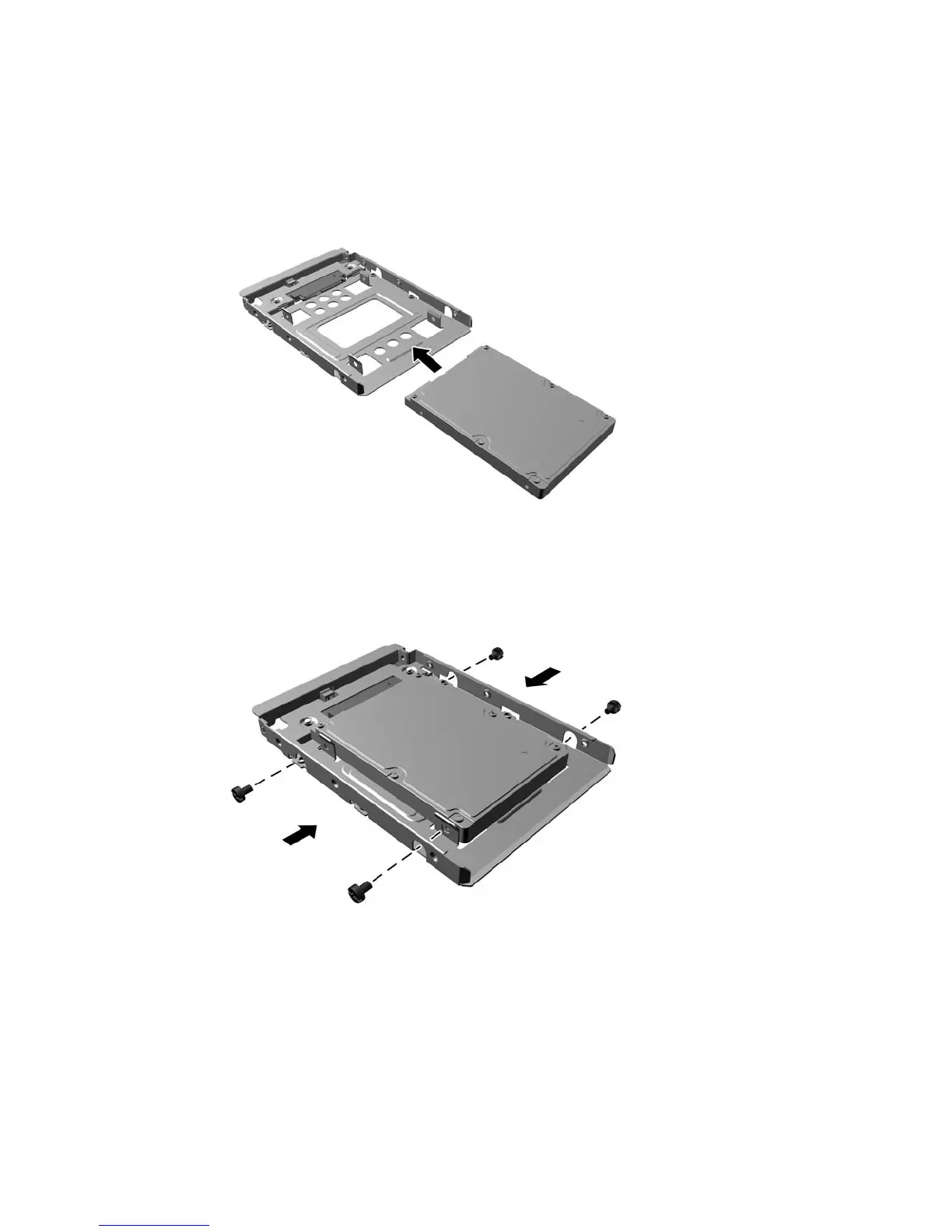

6. You can install a 3.5-inch hard drive or a 2.5-inch hard drive with a 3.5-inch adapter bracket
similar to the example shown below.
●
Slide the drive into the bay adapter bracket, ensuring the connector on the drive is fully
inserted into the connector on the adapter bracket.
●
Secure the drive to the bay adapter bracket by installing four black M3 adapter bracket
screws through the sides of the bracket into the drive.
30 Chapter 2 Hardware upgrades
