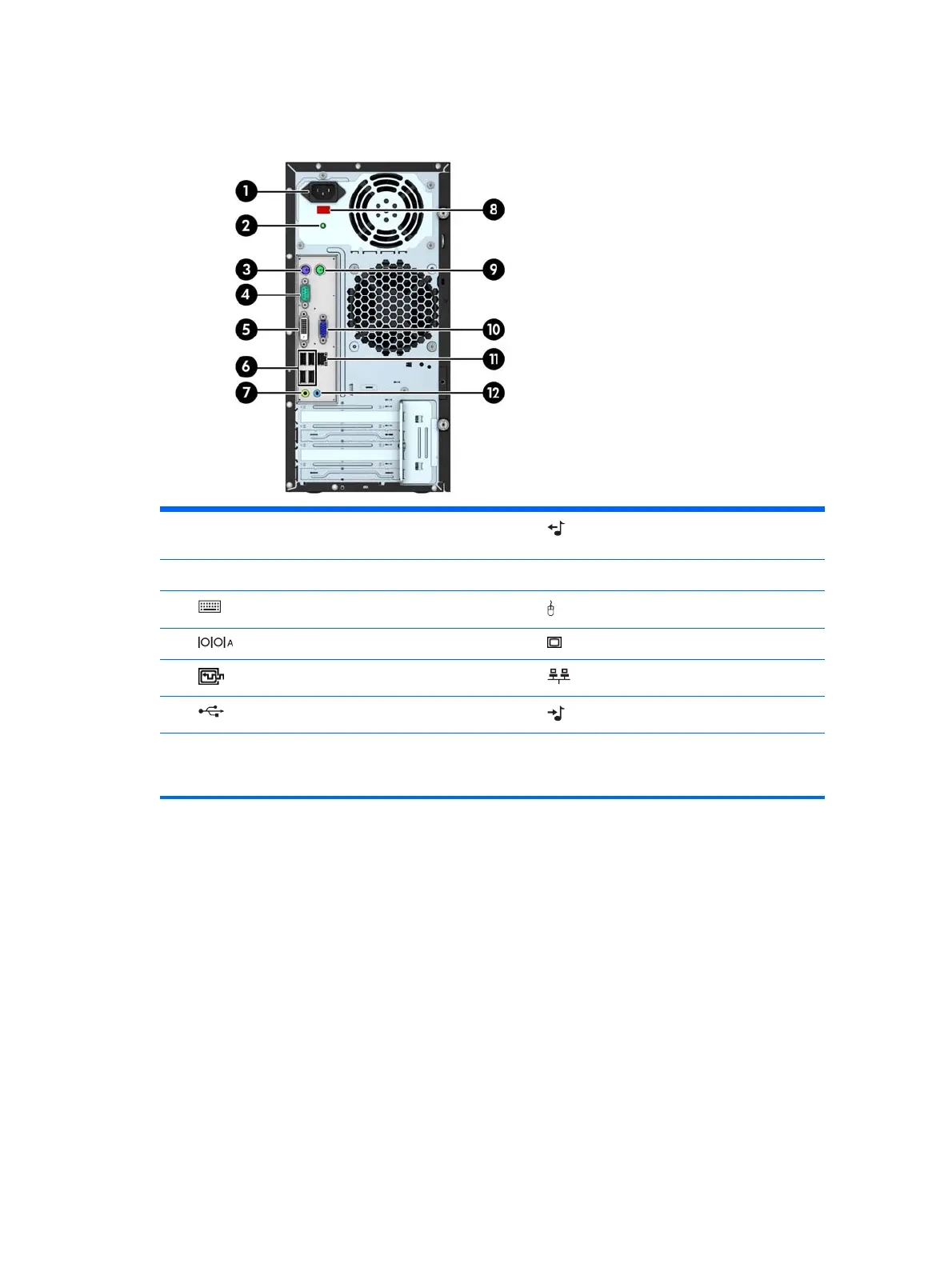

Rear panel components
1 Power Cord Connector 7 Line-Out Connector for powered audio
devices (green)
2 Power Indicator Light 8 Voltage Select Switch
3
PS/2 Keyboard Connector (purple) 9 PS/2 Mouse Connector (green)
4
Serial Connector 10 VGA Monitor Connector
5
DVI-D Monitor Connector 11 RJ-45 Network Connector
6
USB 2.0 Ports (black) 12 Line-In Audio Connector (blue)
NOTE: An optional second serial port and an optional parallel port are available from HP.
The integrated graphics cannot be enabled when a discrete graphics card is installed.
