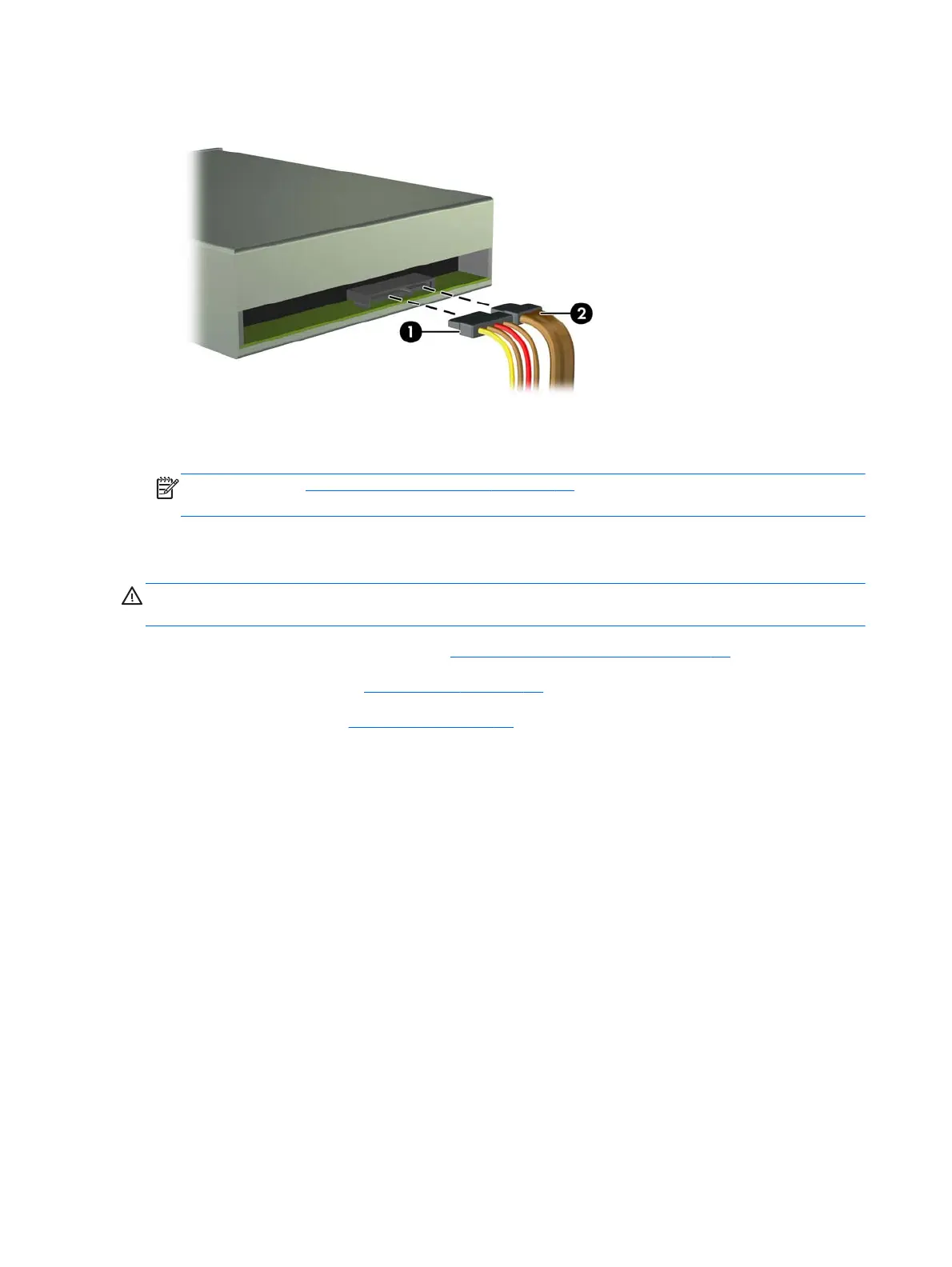

6. Connect the power cable (1) and data cable (2) to the rear of the optical drive.
7. Connect the opposite end of the data cable to the light blue SATA connector on the system board
labeled SATA1.
NOTE: Refer to System board connections on page 38 for an illustration of the system board
drive connectors.
Removing a 3.5-inch device
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
1. Prepare the computer for disassembly (Preparation for disassembly on page 26)
2. Remove the access panel (
Access panel on page 27)
3. Remove the front bezel (
Front bezel on page 28)
44 Chapter 5 Removal and replacement procedures: Microtower
