FBWC cache module
13. Install the PCI riser cage (on page 21).
14. Install the processor air baffle. ("Install the processor air baffle" on page 20)
15. Install the access panel. ("Install the access panel" on page 19)
16. Slide the server into the rack.
17. Connect each power cord to the server.
18. Connect each power cord to the power source.
19. Power up the server. ("Power up the server" on page 17)
20. If removed, install the rack bezel (on page 60).
Installing the front video adapter cable
Depending on the model purchased, the server may look different than shown.
To install the component:

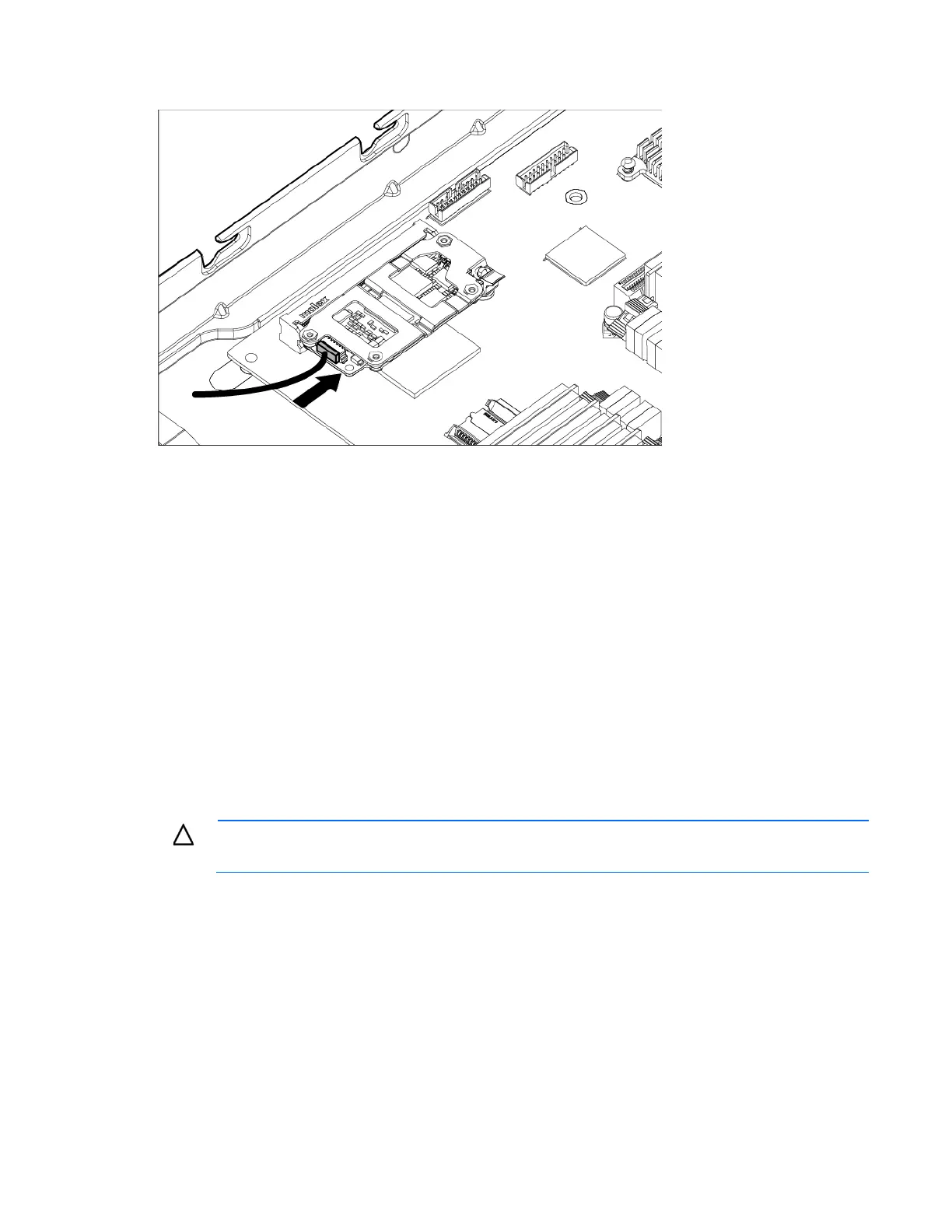

1. Connect the front video adapter to the front video connector.
CAUTION: Be sure to connect the video adapter to the video connector, and not to the USB
connector.
