Hardware options installation 60

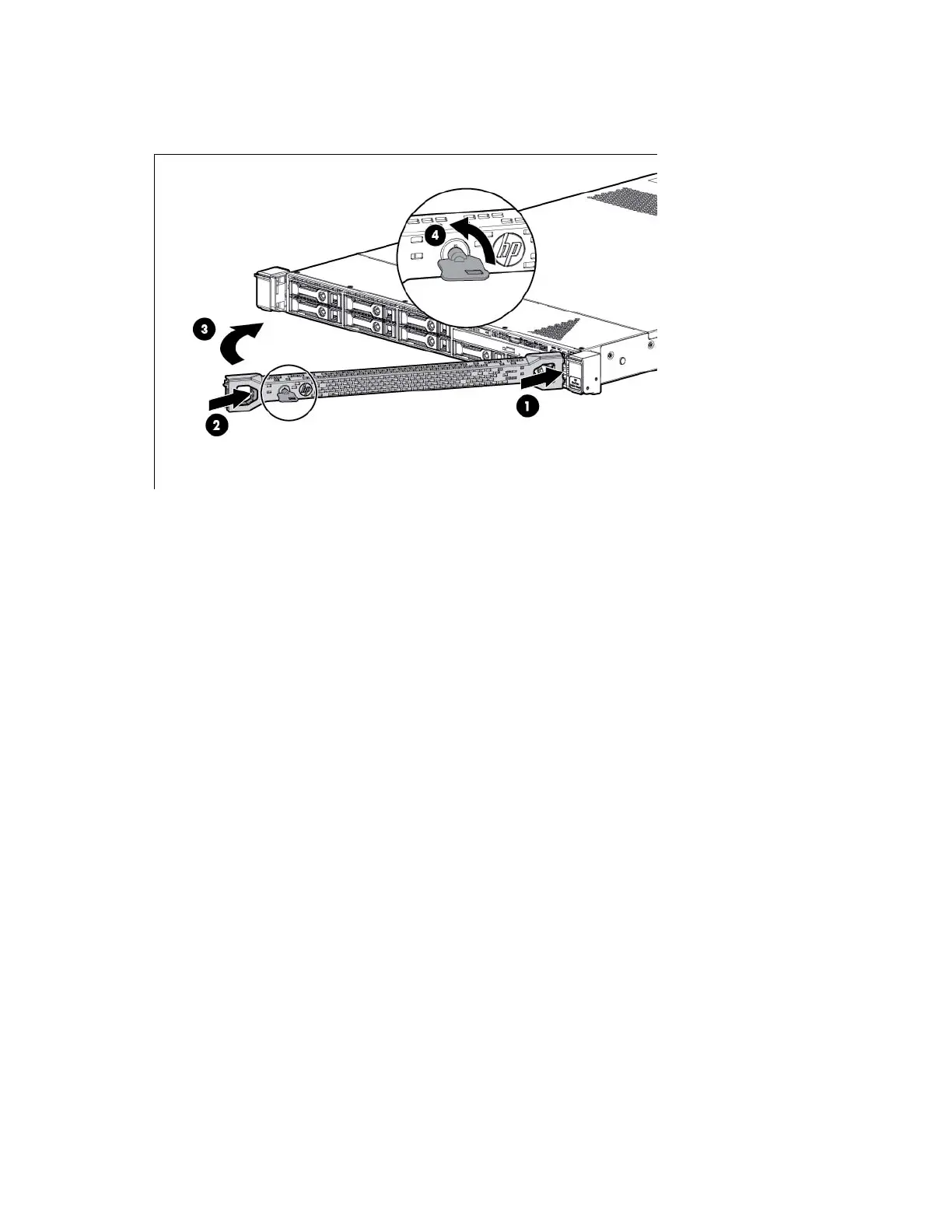

Install the rack bezel
Install the rack bezel into the chassis, and then lock the rack bezel with the key.
VGA power cable option
1. If installed, remove the rack bezel. ("Remove the rack bezel" on page 59)
2. Power down the server (on page 17).
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Extend the server from the rack (on page 17).
5. Remove the access panel (on page 19).
6. Remove the processor air baffle (on page 19).
