Hardware options installation 57
o

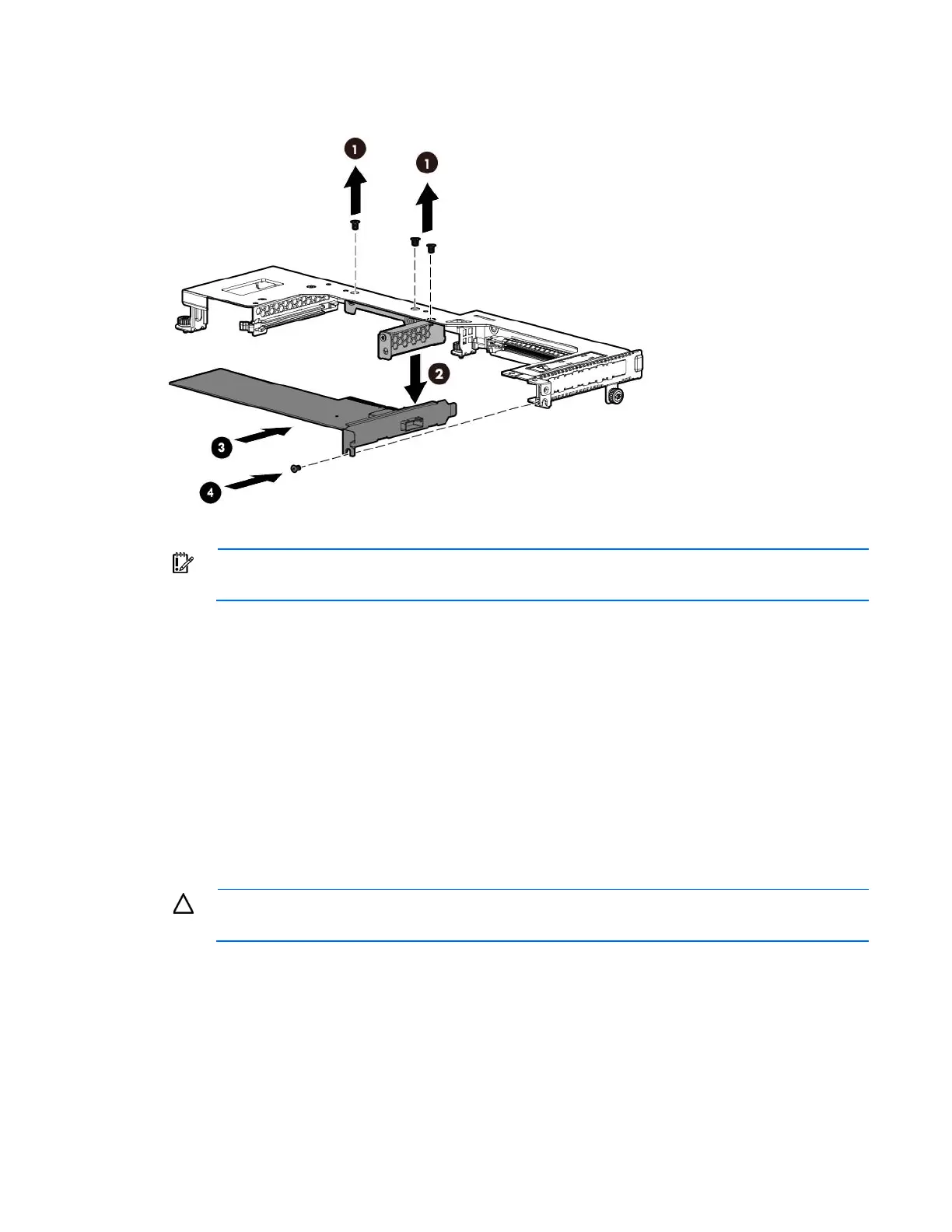

If installing a full length full height expansion board, remove the low profile bracket, and then install
the expansion board into the slot until it sits firmly.
10. Install the PCI riser board assembly. ("Install the PCI riser cage" on page 21)
IMPORTANT: The server does not power up if the PCI riser board assembly is not seated
properly.
11. Connect all internal or external cabling to the expansion boards.
12. Install the processor air baffle. ("Install the processor air baffle" on page 20)
13. Install the access panel (on page 19).
14. Slide the server into the rack.
15. Connect each power cord to the server.
16. Connect each power cord to the power source.
17. Power up the server (on page 17).
18. If removed, install the rack bezel (on page 60).
Common slot power supply option
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless
all bays are populated with either a component or a blank.
To install the component:
1. Unfasten the cable management solution to access the power supply bays.
