Removal and Replacement Procedures 58
3.
Tighten the two captive screws to secure the PCI cage to the chassis.

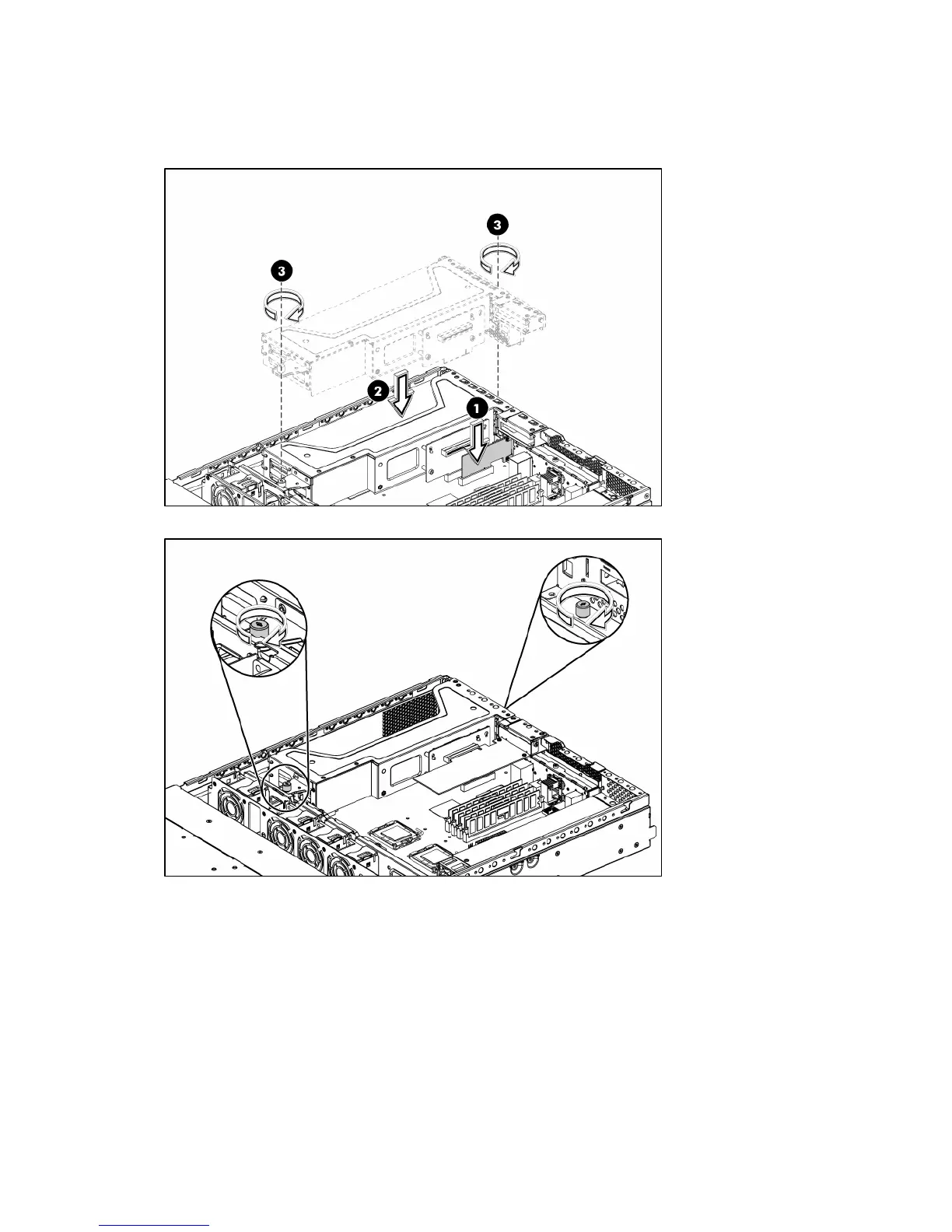

Figure 45 Installing the IPMI card and PCI cage (1)
Figure 46 Installing the PCI cage (2)
4. Connect the necessary cable(s) to the board.
System Battery
The server uses nonvolatile memory that requires a battery to retain system information when power is
removed.
This 3-volt lithium coin cell battery is located on the system board.
