Removal and replacement procedures 41
b.
Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 29).
o Remove the server from the rack (on page 30).
4. Remove the access panel ("Access panel" on page 35).
5. Remove the air baffle ("Air baffle" on page 35).

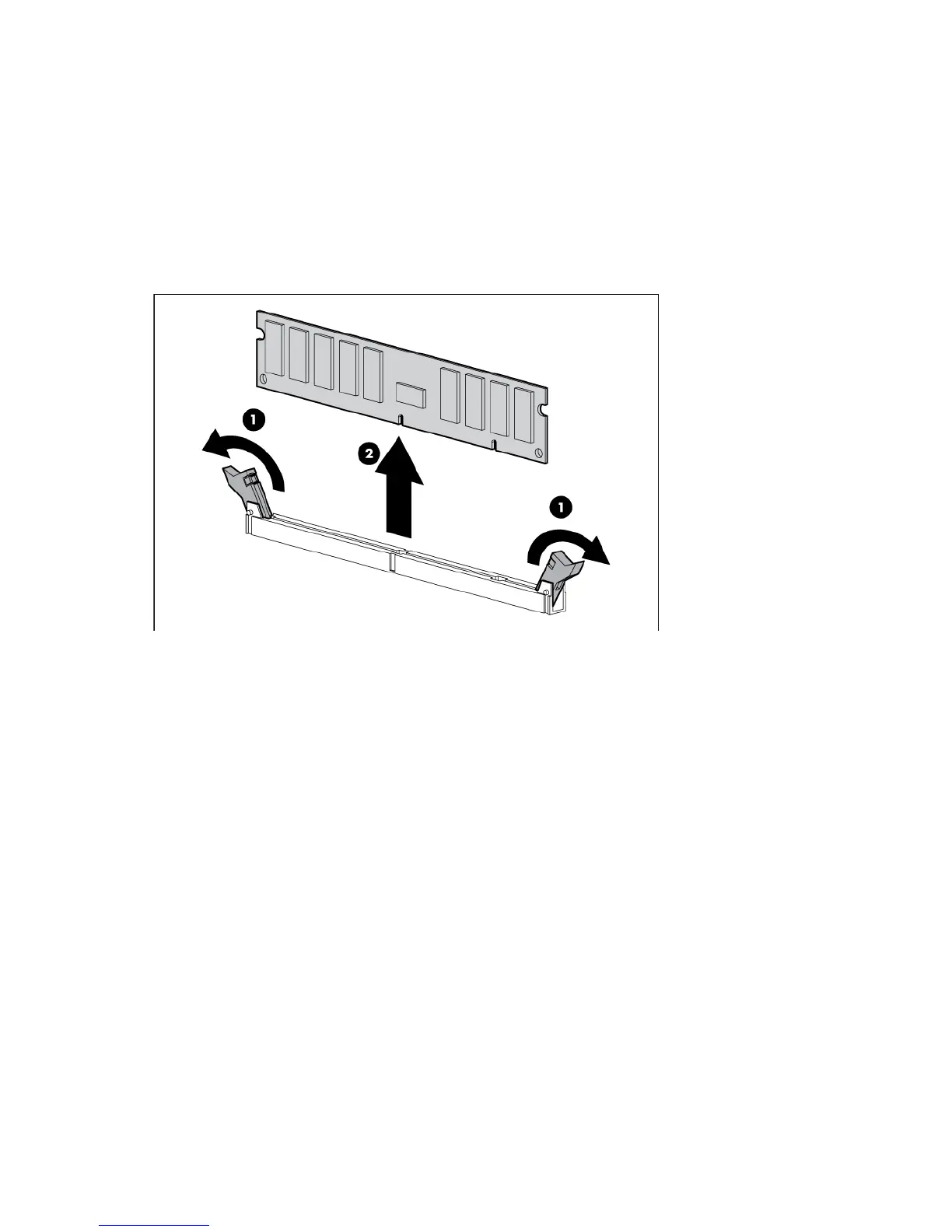

6. Open the DIMM slot latches.
7. Remove the DIMM.
To replace the component, reverse the removal procedure.
Heatsink
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 29).
o Remove the server from the rack (on page 30).
4. Remove the access panel ("Access panel" on page 35).
5. Remove the air baffle ("Air baffle" on page 35).
6. Remove the heatsink:
a. Loosen one pair of diagonally opposite screws halfway, and then loosen the other pair of screws.
b. Completely loosen all screws in the same sequence.
