Removal and replacement procedures 61
7.
Disconnect all cables connected to the system board.
8. Remove all DIMMs ("Removing a DIMM" on page 40).

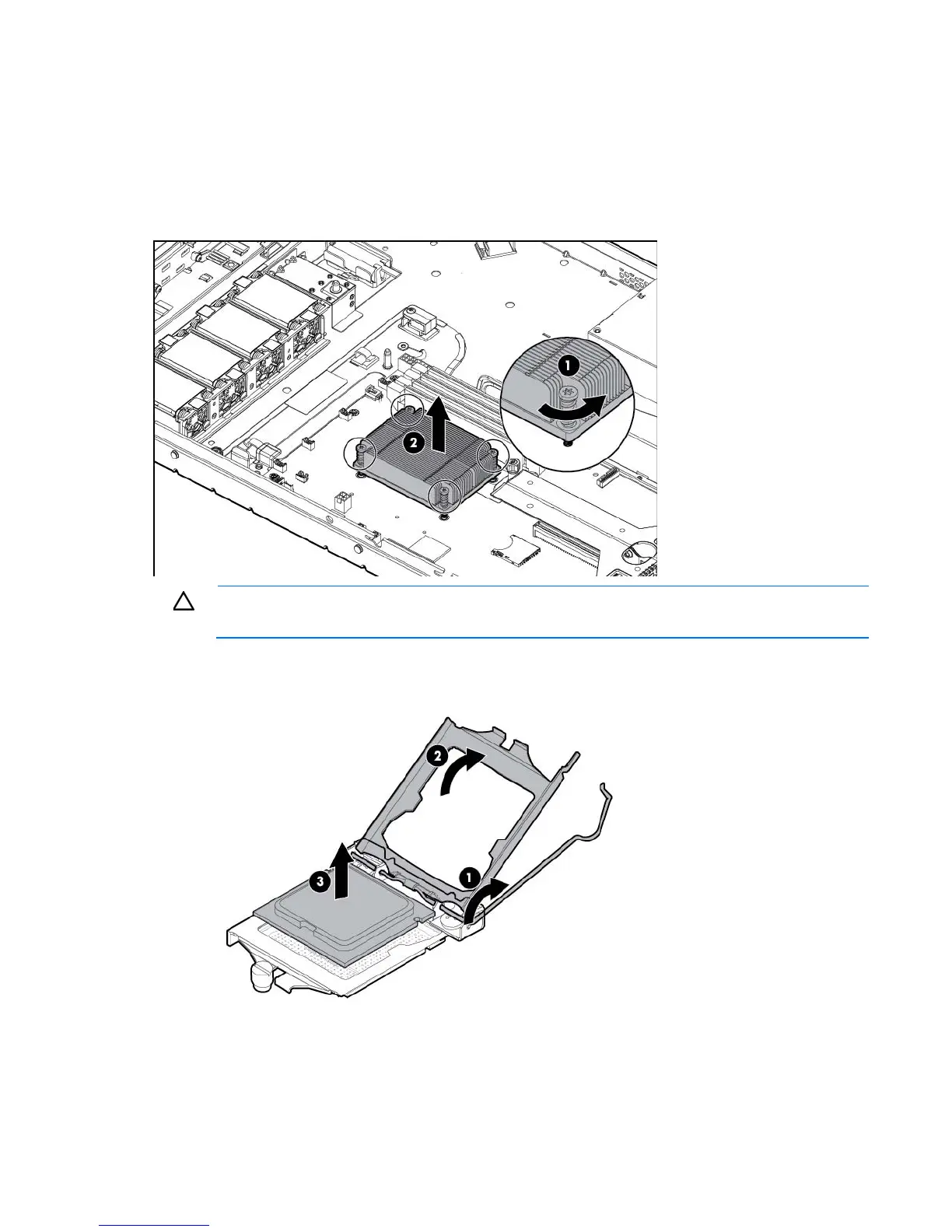

9. Remove the heatsink:
a. Loosen one pair of diagonally opposite screws halfway, and then loosen the other pair of screws.
b. Completely loosen all screws in the same sequence.
c. Remove the heatsink from the processor backplate.
CAUTION: To avoid damage to the processor, do not touch the bottom of the processor,
especially the contact area.
10. Open the processor locking lever, and then open the processor retaining bracket.
11. Grasp the processor by the edges, and then lift it out of the socket.
12. If installed, remove the dedicated iLO management port module.
13. Remove the system board assembly:
