Hardware options installation 34
o
Remove the server from the rack (on page 18).
4. Remove the access panel (on page 19).
5. Remove the PCI riser cage (on page 20).

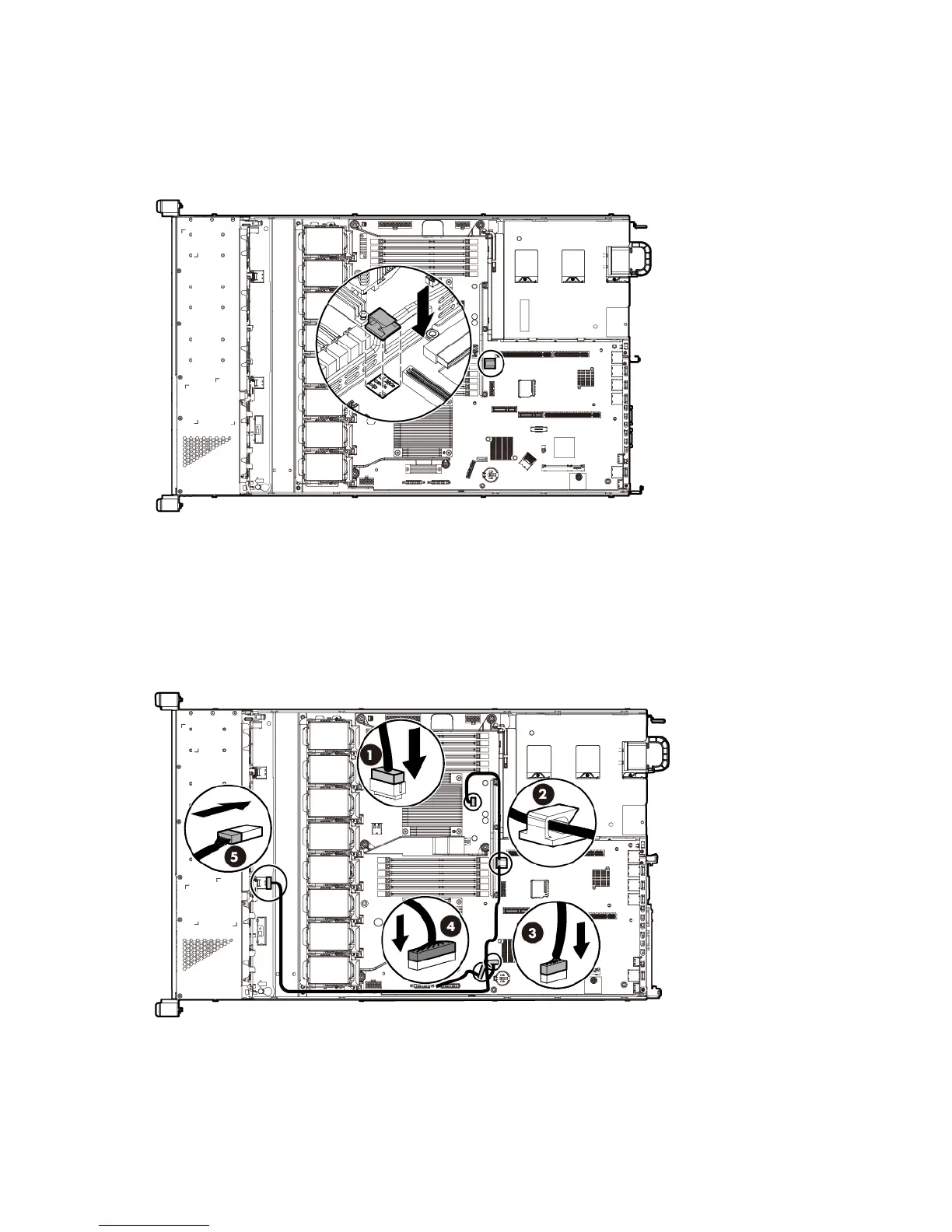

6. Attach the cable clip on top of the square silkscreen marker near the processor 1 DIMM slots.
7. Connect the two-port SATA cable:
a. Connect the cable to the drive sideband signal connector.
b. Secure the cable in the cable clip.
c. Connect the cable to the SATA storage and optical drive connectors.
d. Route the cable along the side of the system board towards the front chassis, and then connect the
cable to the drive backplane.
8. Connect the rest of the drive cables required in this drive configuration. For more information, see
"Storage cabling (on page 71)."
9. Install the PCI riser cage (on page 21).
