Hardware options installation 33
2.

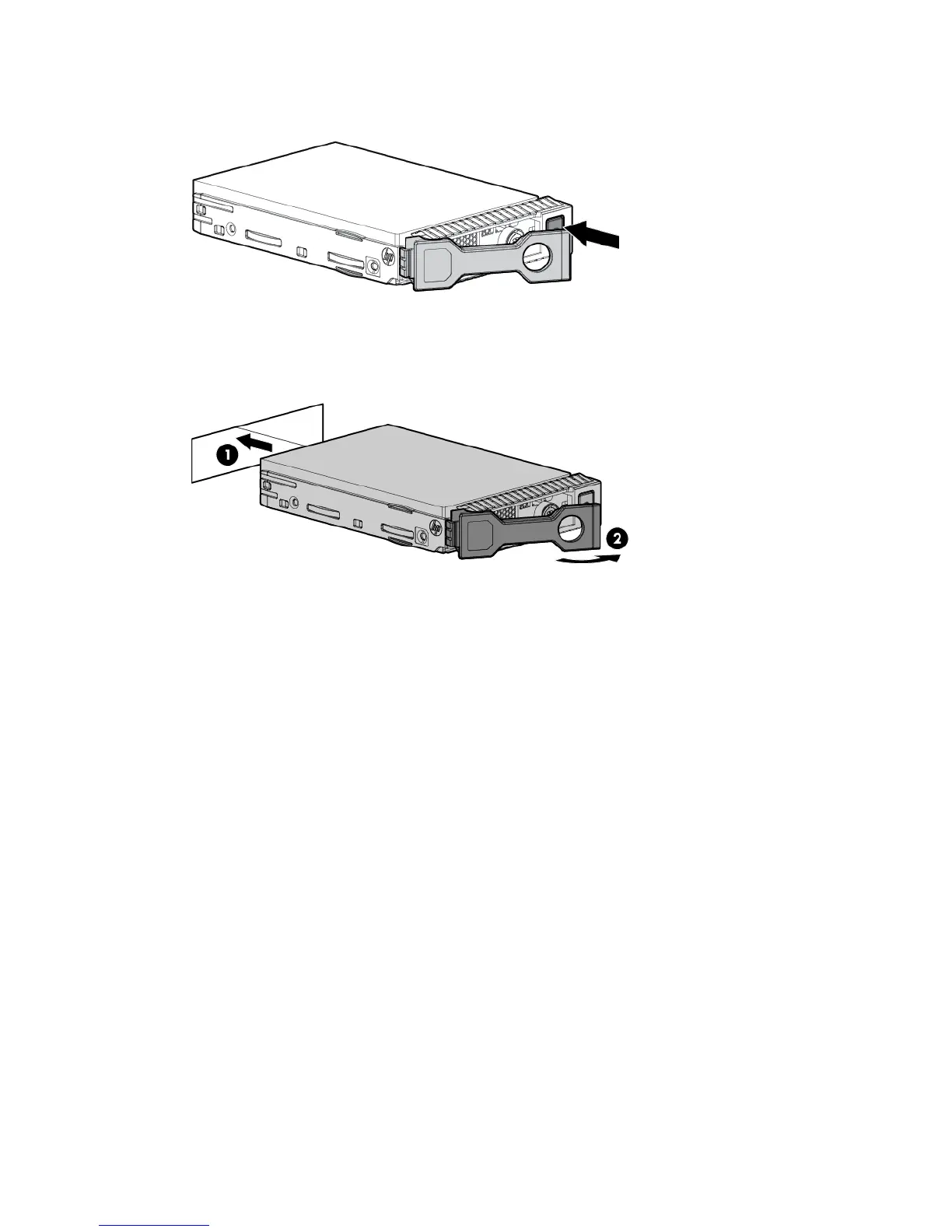

Prepare the drive.
3. Install the drive.
4. Determine the status of the drive from the drive LED definitions (on page 13).
To configure arrays, see the HP Smart Storage Administrator User Guide on the HP website
(http://www.hp.com/go/smartstorage/docs).
Drive cable options
For more information about product features, specifications, options, configurations, and compatibility, see
the product QuickSpecs on the HP Product Bulletin website (http://www.hp.com/go/productbulletin).
Two-port SATA cable option
When this cable option is installed in the eight-bay drive cage, the server supports the six-drive SATA
configuration. In this configuration, drive bays 1 through 6 are populated, while drive bays 7 and 8 contain
drive blanks.
To connect the cable option:
1. Power down the server (on page 17).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 17).
To Next Page
