Hardware options installation 41
a.

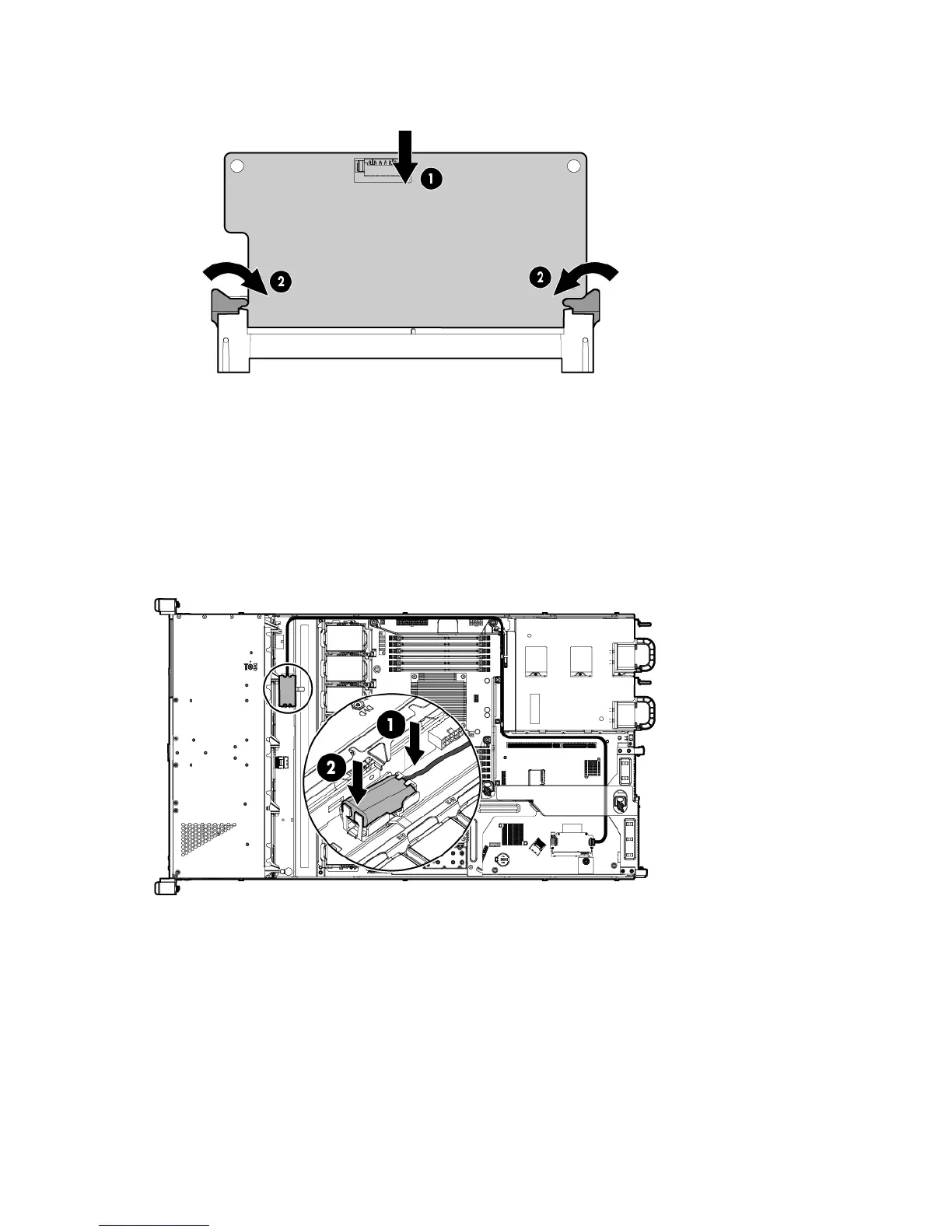

Install the cache module on the storage controller.
b. Install the storage controller ("Installing a storage controller" on page 38).
9. Install the PCI riser cage (on page 21).
10. Install the capacitor pack:
a. Insert the cable end of the capacitor pack in the holder.
b. Press the opposite end of the capacitor pack in the holder.
For more information on capacitor pack cabling in different drive configurations, see "Storage cabling
(on page 71)."
11. Install the access panel (on page 20).
12. Install the server into the rack ("Installing the server into the rack" on page 27).
13. Power up the server (on page 17).
