Hardware options installation 52
a.

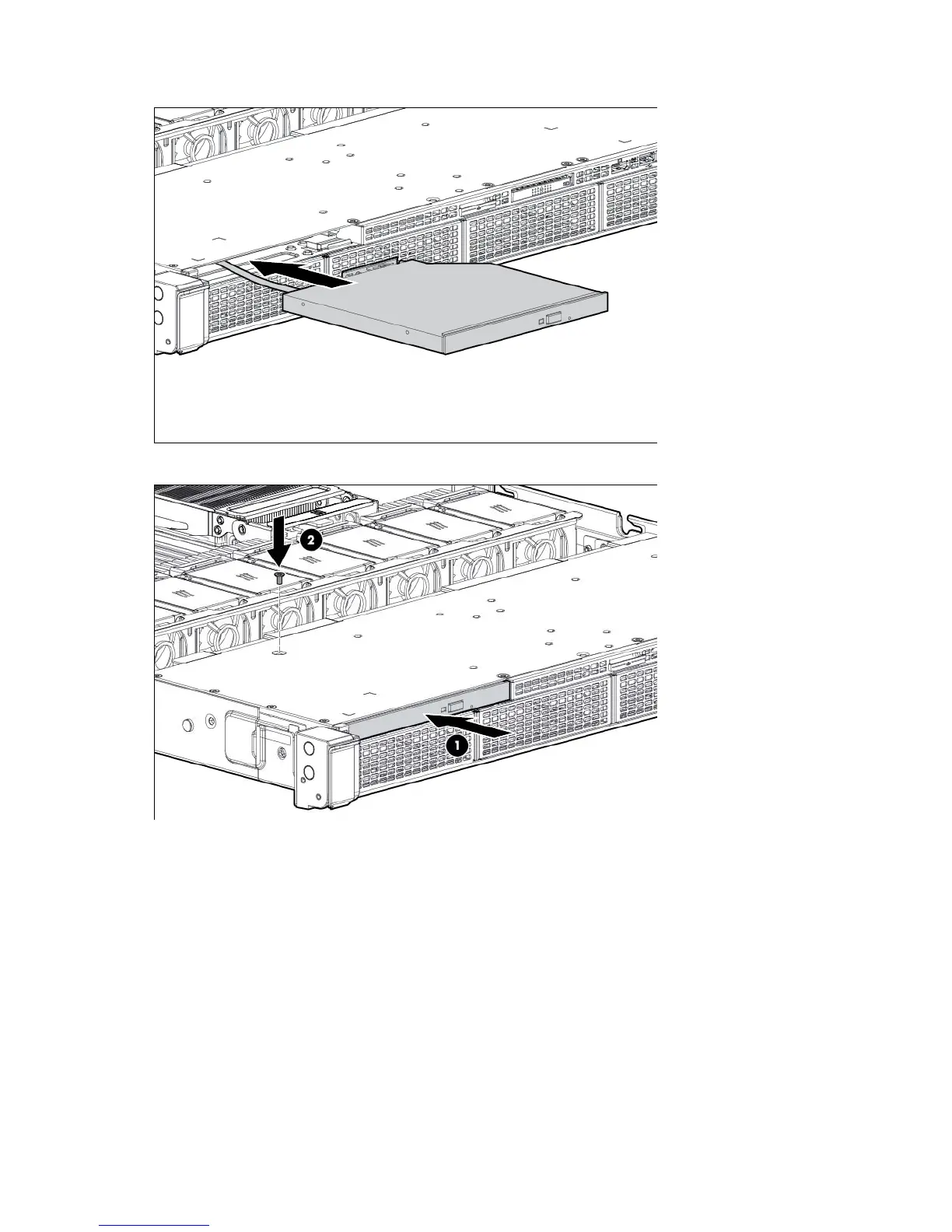

Connect the cable to the rear of the DVD drive, and then route the cable through the DVD drive bay.
b. Install the DVD drive.
c. Route and connect the other end of the cable to the SATA DVD-ROM drive connector on the system
board, using the same steps provided for the SFF DVD-ROM drive.
8. Install the access panel (on page 23).
9. Slide the server into the rack.
10. Connect each power cord to the server.
11. Connect each power cord to the power source.
12. Power up the server (on page 20).
Controller options
The server ships with an embedded Smart Array P420i controller. For more information about the controller
and its features, see the HP Smart Array Controllers for HP ProLiant Servers User Guide on the HP website
