Hardware options installation 61
5.

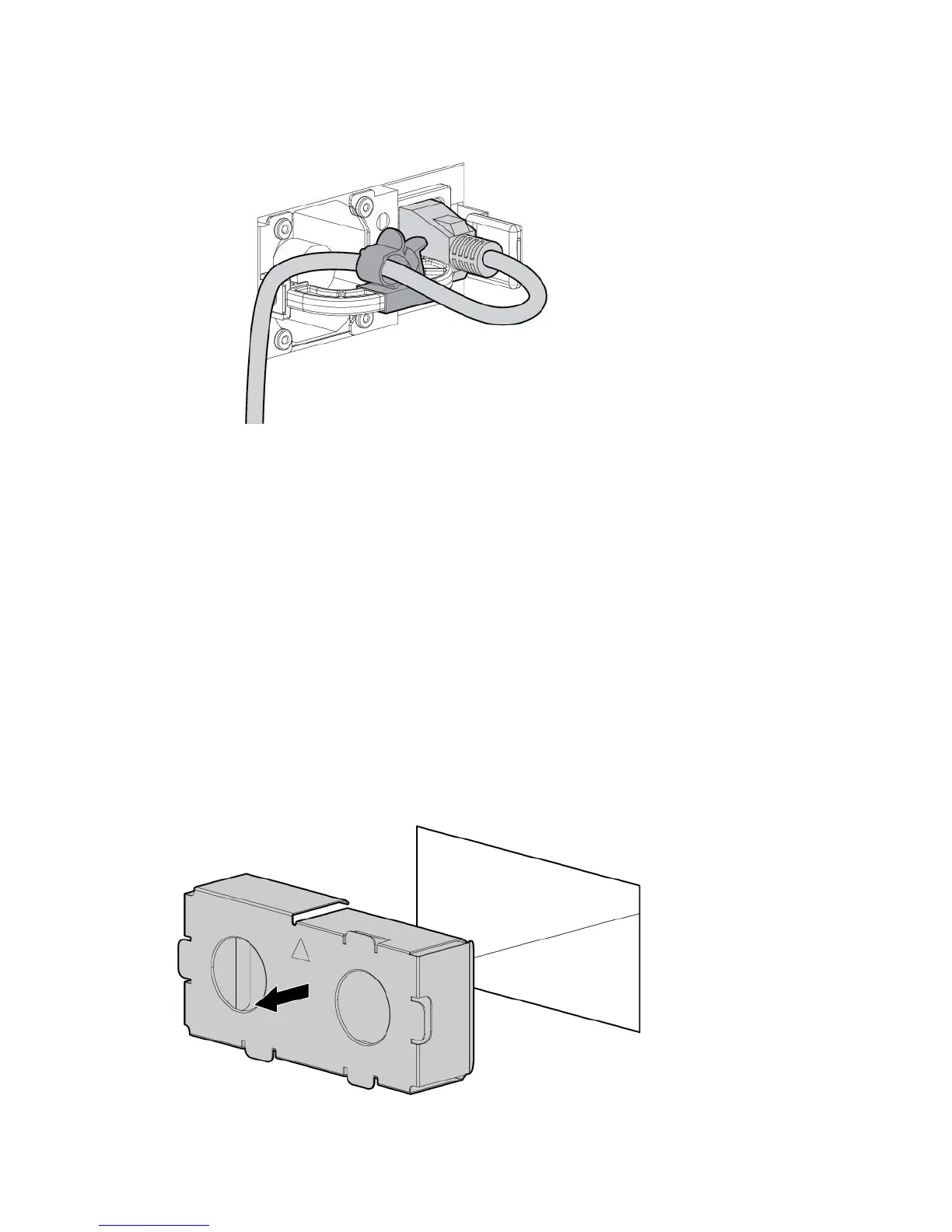

Connect the power cord to the power supply.
6. Route the power cord through the cable management solution.
7. Connect the power cord to the power source.
8. Be sure that the power supply LED is green ("Rear panel LEDs and buttons" on page 11).
48V DC power supply option
One of the following optional HP input cables with pre-fastened ring tongues may be purchased from HP or
an authorized reseller:
• A5S97A—1.3-m (4.27-ft) 48V DC Power Cable Kit
• A5S98A—2.5-m (8.20-ft) 48V DC Power Cable Kit
If you are not using an optional HP input cable, use an HP-approved 10 or 12 AWG green and yellow
ground cable, no shorter than 150 cm (59.06 in), and 10 or 12 AWG power cables.
To install the component:
1. Remove the blank.
