Hardware options installation 54
3.
Extend the server from the rack (on page 20).
4. Remove the access panel (on page 23).
5. Remove the PCI riser cage (on page 24).

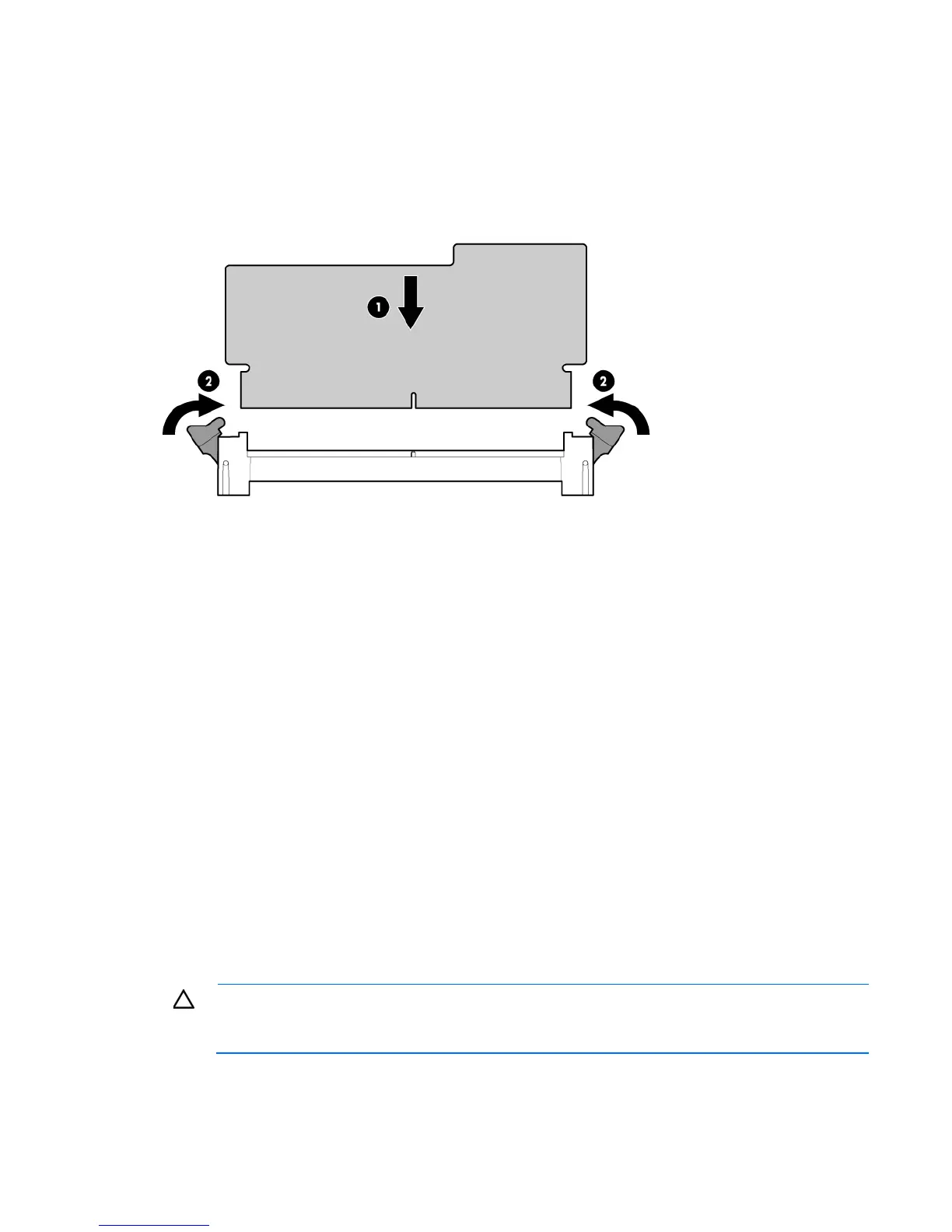

6. Install the cache module in the SAS cache module connector on the system board. For connector
locations, see "System board components (on page 12)."
7. Install the PCI riser cage (on page 25).
8. Install the access panel (on page 23).
9. Slide the server into the rack.
10. Connect each power cord to the server.
11. Connect each power cord to the power source.
12. Power up the server (on page 20).
Installing the FBWC capacitor pack
1. Power down the server (on page 20).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend the server from the rack (on page 20).
4. Remove the access panel (on page 23).
5. Remove the PCI riser cage (on page 24).
6. Install the cache module ("Installing the cache module" on page 53).
CAUTION: When connecting or disconnecting the capacitor pack cable, the connectors on the
cache module and cable are susceptible to damage. Avoid excessive force and use caution to
avoid damage to these connectors.
7. Install the FBWC capacitor pack, and then connect the FBWC cable to the cache module.
