Hardware options installation 56

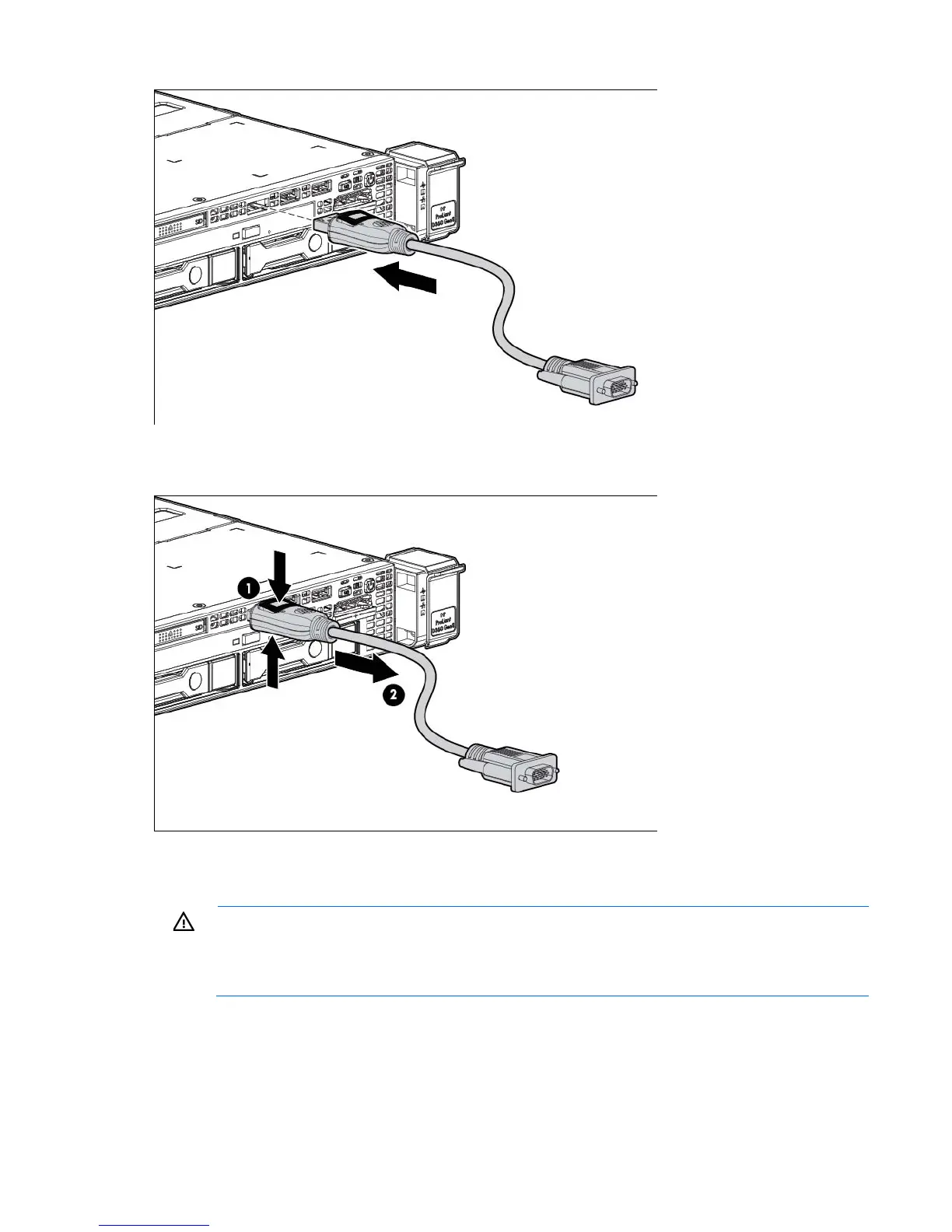

2. Connect the front video adapter to the video device.
To remove the front video adapter, squeeze the top and bottom together to release the locking mechanism.
FlexibleLOM option
WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment,
remove the power cord to remove power from the server. The front panel Power On/Standby
button does not completely shut
off system power. Portions of the power supply and some internal
circuitry remain active until AC power is removed.
1. Power down the server (on page 20).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
