Hardware options installation 57
3.
Remove any attached network cables.
4. Extend the server from the rack (on page 20).
5. Remove the access panel (on page 23).

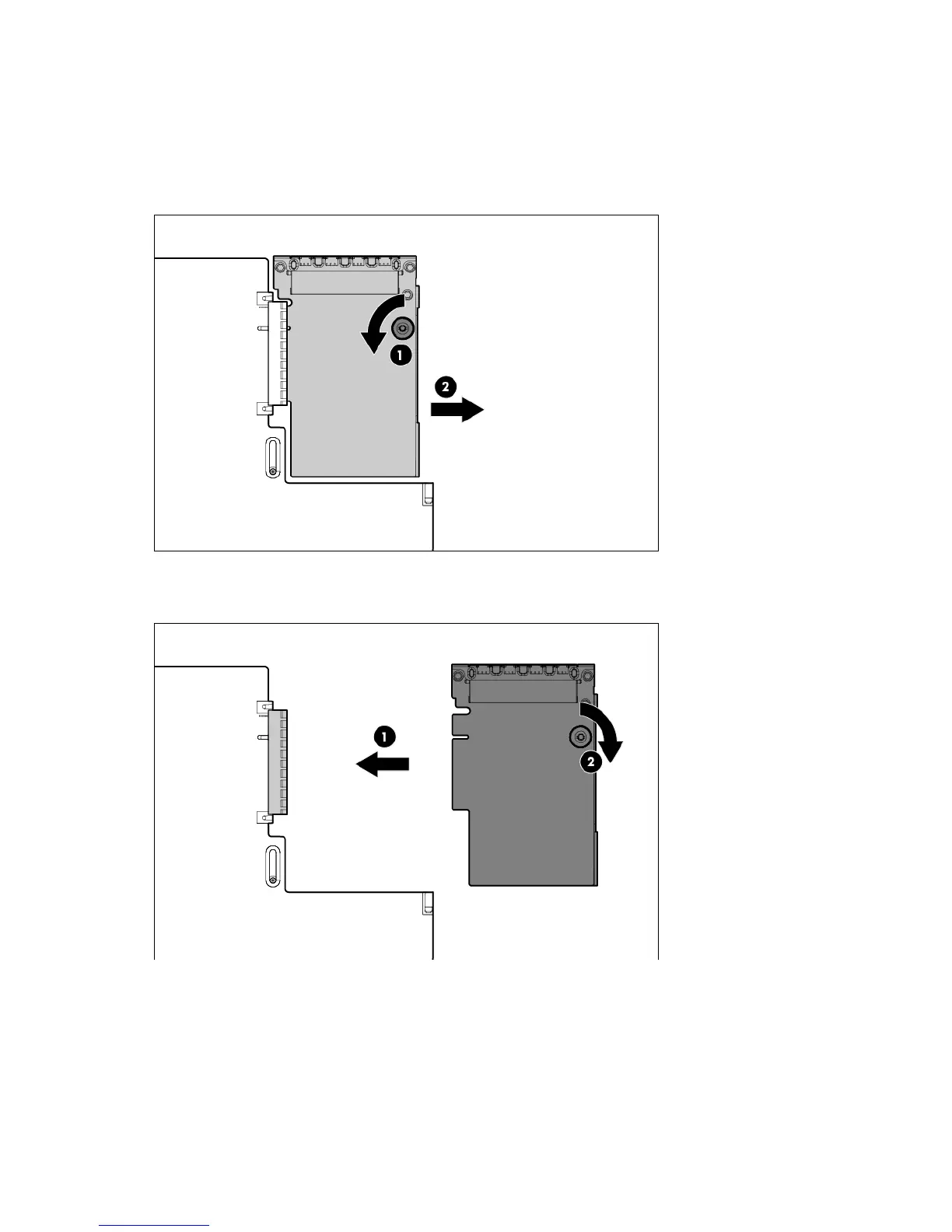

6. Loosen the thumbscrew.
7. Remove the existing FlexibleLOM.
To replace the component:
1. Firmly seat the FlexibleLOM in the slot, and then tighten the thumbscrew.
2. Install the access panel (on page 23).
3. Slide the server into the rack.
4. Connect the LAN segment cables.
5. Connect each power cord to the server.
6. Connect each power cord to the power source.
