HP ProLiant DL380p User Manual

Component identification 10
Systems Insight Display LEDs

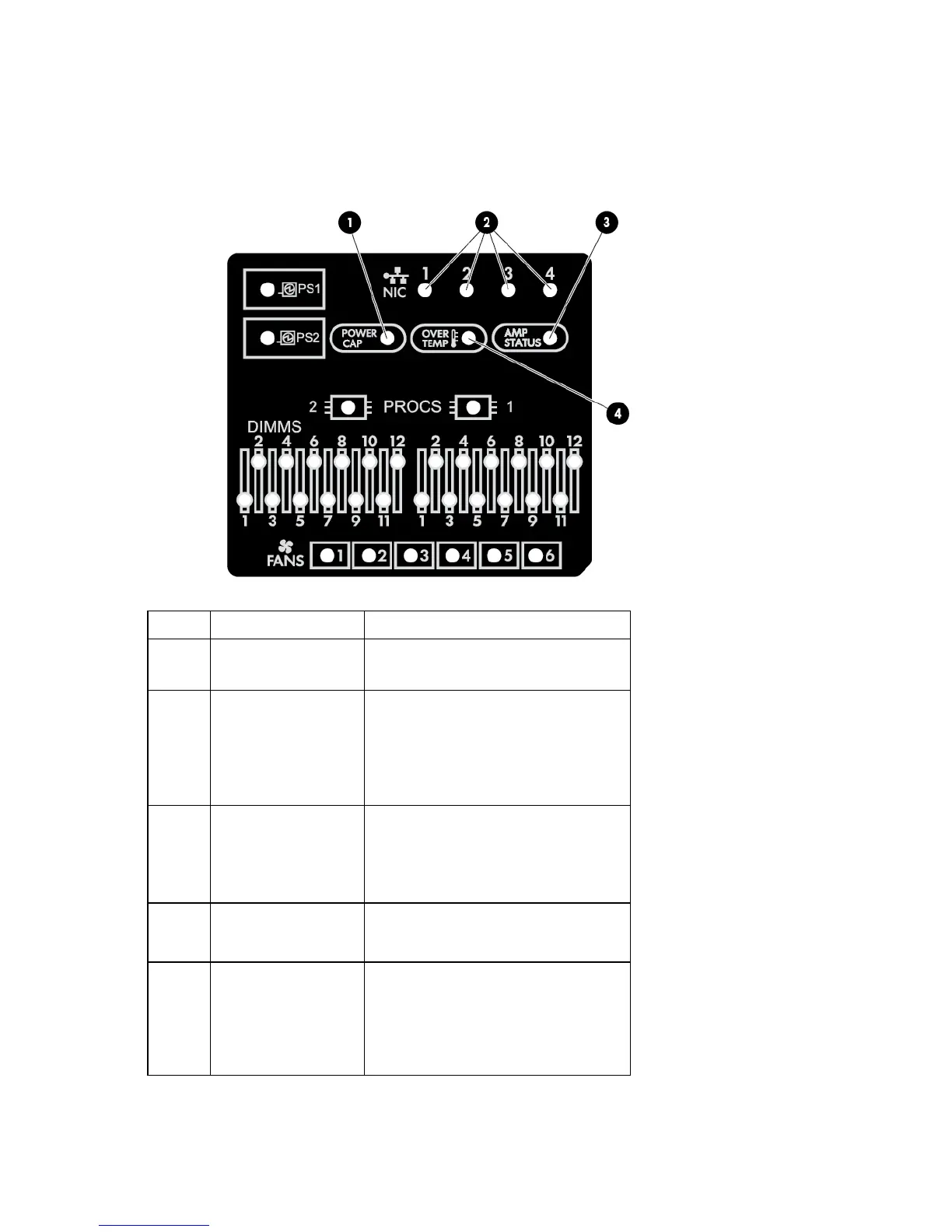

The HP Systems Insight Display LEDs represent the system board layout. The display enables diagnosis with
the access panel installed.
Item Description Status
1
Power cap Off = System is in standby, or no cap is set.
Solid green = Power cap applied
2
NIC link/activity Off = No link to network. If the power is off,
view the rear panel RJ-45 LEDs for status
("Rear panel LEDs and buttons" on page
12).
Flashing green = Network link and activity
Solid green = Network link
3
AMP status Off = AMP modes disabled
Solid green = AMP mode enabled
Solid amber = Failover
Flashing amber = Invalid configuration
4
Over temp Off = Normal
Solid amber = High system temperature
detected
—
All other LEDs Off = Normal
Amber = Failure
For more information on the activation of
these LEDs, see "Systems Insight Display
LED combinations (on page 11)."

HP ProLiant DL380p Specifications

General

Processor	Intel Xeon E5-2600 series
Processor Sockets	2
Memory	Up to 768GB DDR3
Memory Slots	24 DIMM slots
Expansion Slots	Up to 6 PCIe 3.0 slots
Form Factor	2U rack
Storage	Up to 25 SFF or 12 LFF drive bays
RAID Support	Smart Array P420i controller, supports RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1GbE embedded ports
Power Supply	Up to 2x 460W, 750W, or 1200W PSUs
Operating System Support	Windows Server, RHEL, SUSE, VMware
