HP ProLiant DL380p User Manual

Operations 23
To remove the component:
1. Power down the server if performing a non-hot-plug installation or maintenance procedure ("Power
down the server" on page 21).
2. Extend the server from the rack (on page 21).
3. Use the T-15 Torx screwdriver attached to the rear of the server to loosen the security screw on the hood
latch.
4. Lift up on the hood latch handle, and then remove the access panel.
Install the access panel
1. Place the access panel on top of the server with the hood latch open. Allow the panel to extend past the
rear of the server approximately 1.25 cm (0.5 in).
2. Push down on the hood latch. The access panel slides to a closed position.
3. Use the T-15 Torx screwdriver attached to the rear of the server to tighten the security screw on the hood
latch.
Access the product rear panel

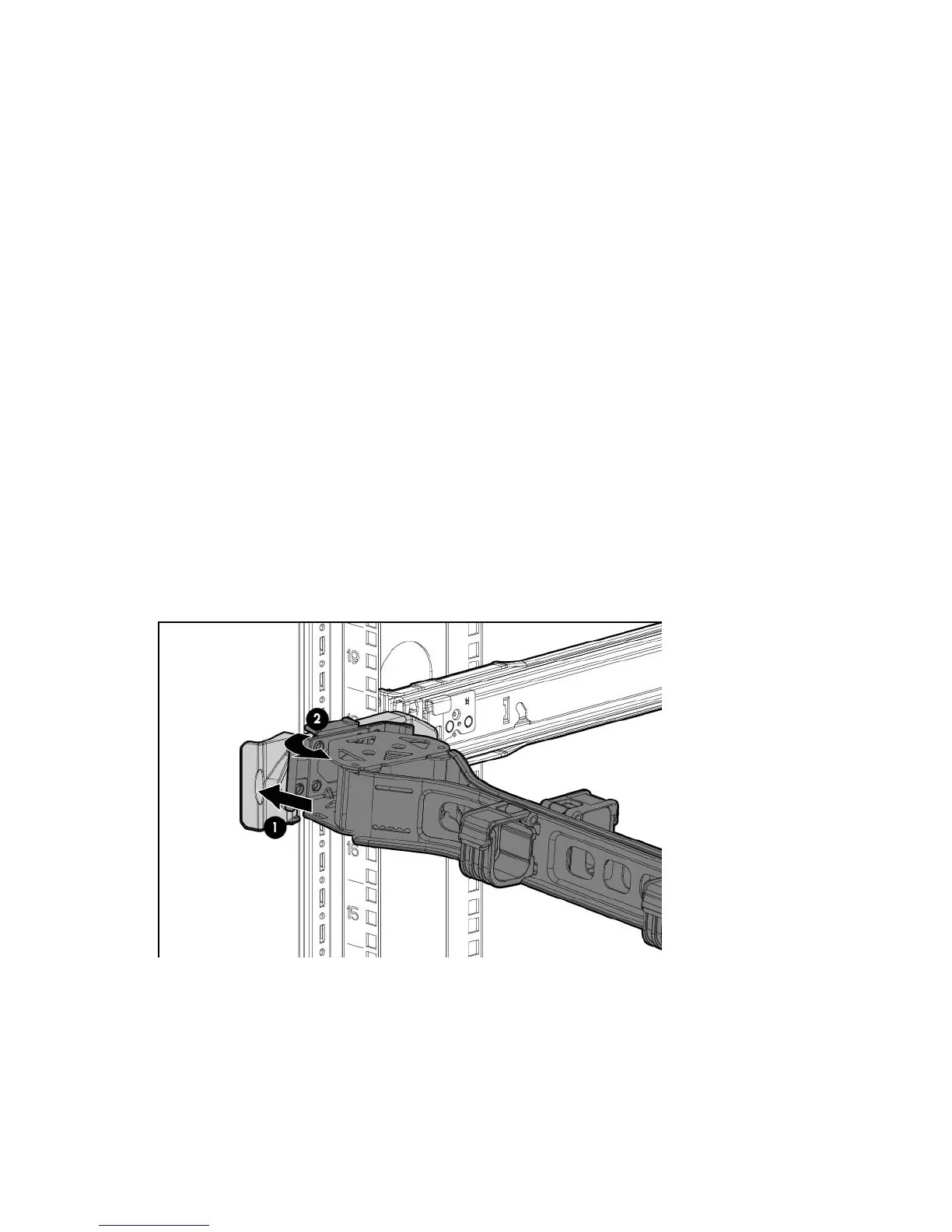

Opening the cable management arm
To access the server rear panel:
1. Release the cable management arm.

HP ProLiant DL380p Specifications

General

Processor	Intel Xeon E5-2600 series
Processor Sockets	2
Memory	Up to 768GB DDR3
Memory Slots	24 DIMM slots
Expansion Slots	Up to 6 PCIe 3.0 slots
Form Factor	2U rack
Storage	Up to 25 SFF or 12 LFF drive bays
RAID Support	Smart Array P420i controller, supports RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1GbE embedded ports
Power Supply	Up to 2x 460W, 750W, or 1200W PSUs
Operating System Support	Windows Server, RHEL, SUSE, VMware
