Component identification 13
Systems Insight Display
LED and color
Health LED System power
LED
Status
Only one power supply is installed and
that power supply is in standby.
Power supply fault
System board fault
Power supply (amber)
Amber Green One or more of the following conditions may
exist:
Redundant power supply is installed and
only one power supply is functional.
AC power cord is not plugged into
redundant power supply.
Redundant power supply fault
Power supply mismatch at POST or
power supply mismatch through hot-plug
addition
Power cap (off)
— Amber Standby
Power cap (off)
— Flashing green Waiting for power
Power cap (off)
— Green Power is available.
IMPORTANT: If more than one DIMM slot LED is illuminated, further troubleshooting is required.
Test each bank of DIMMs by removing all other DIMMs. Isolate the failed DIMM by replacing
each DIMM in a bank with a known working DIMM.

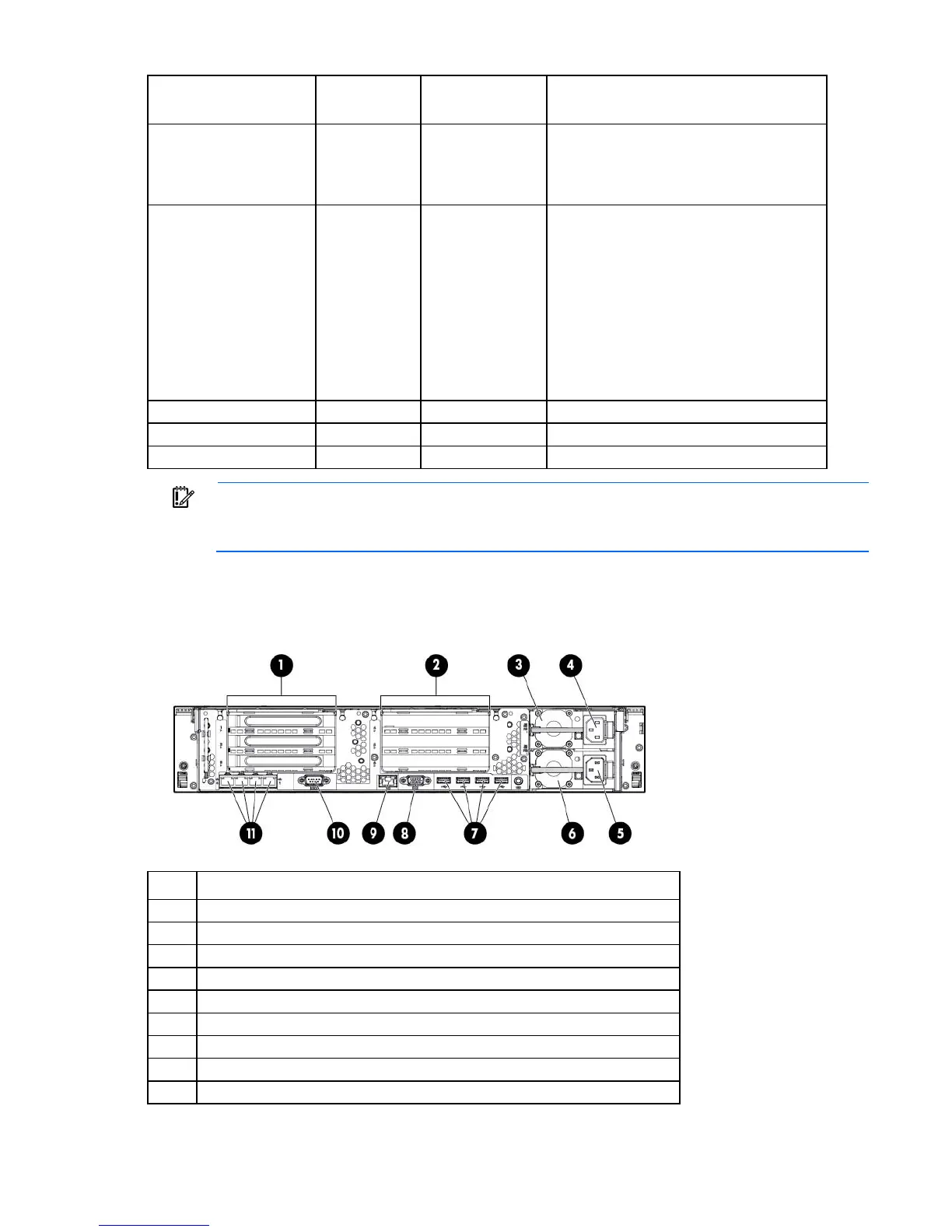

Rear panel components
Item Description
1
PCIe slots 1–3 (top to bottom)
2
PCIe slots 4–6, optional (top to bottom)
3
Power supply 1 (PS1)
4
PS1 power connector
5
PS2 power connector, optional
6
Power supply 2 (PS2), optional
7
USB connectors (4)
8
Video connector
9
iLO connector
