Hardware options installation 70
To remove the component:
1. Power down the server (on page 23).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove any attached network cables.
4. Extend the server from the rack (on page 23).
5. Remove the access panel (on page 25).
6. Remove the primary PCIe riser cage (on page 29).

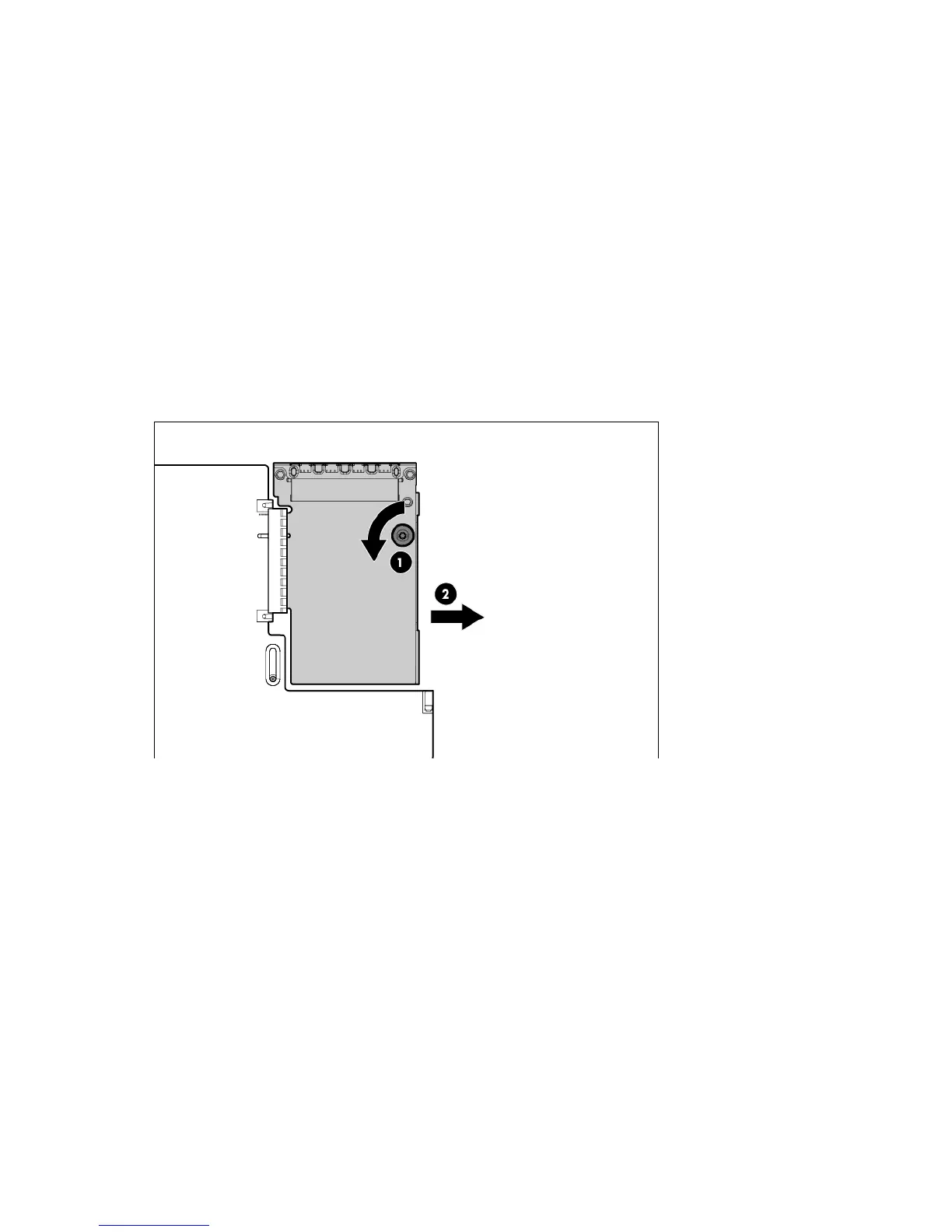

7. Loosen the thumbscrew.
8. Remove the existing FlexibleLOM.
Pull the FlexibleLOM toward the front of the server while removing, to avoid catching it on the rear
chassis.
