Cabling 95
6.

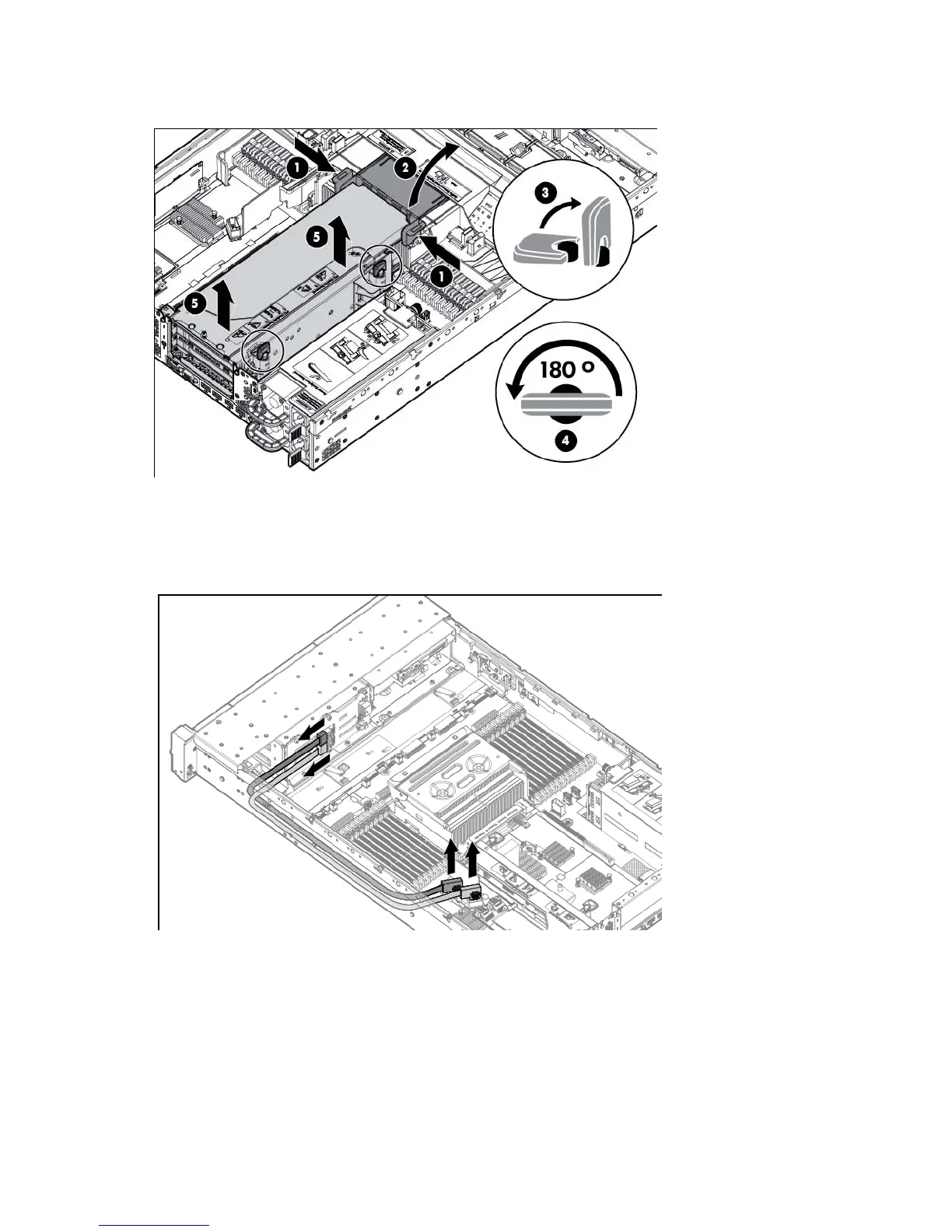

If a full-length expansion board is installed in slot 4, release the full-length expansion board retainer,
and then remove the secondary PCIe riser cage.
7. Remove the air baffle (on page 34).
8. Remove the fan cage (on page 26).
9. Disconnect any SAS cables from the hard drive cage and either the embedded SAS controller or an
optional SAS controller. Do not disconnect the power cable.
