Removal and replacement procedures 43
2.
Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 27).
o Remove the server from the rack (on page 30).
4. Remove the access panel ("Access panel" on page 35).

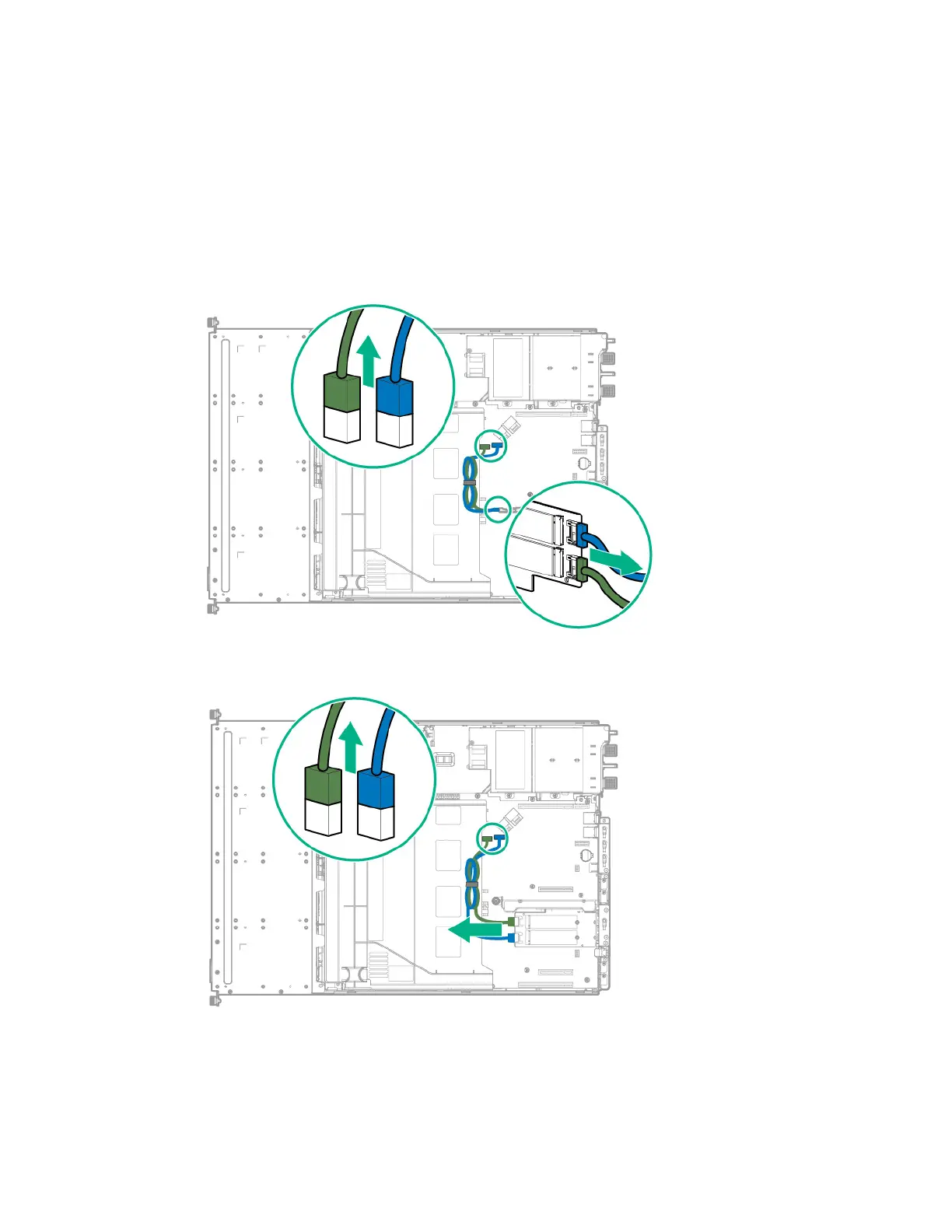

5. Disconnect the SATA cables from the M.2 SSD enablement board and the system board.
o M.2 SSD SATA cable disconnection when the enablement board is installed on the system board
o M.2 SSD SATA cable disconnection when the enablement board is installed in the FlexibleLOM
riser cage
6. Remove the M.2 SSD enablement board.
