HP ProLiant DL80 Gen9 - Rear Panel Components

Component identification 93

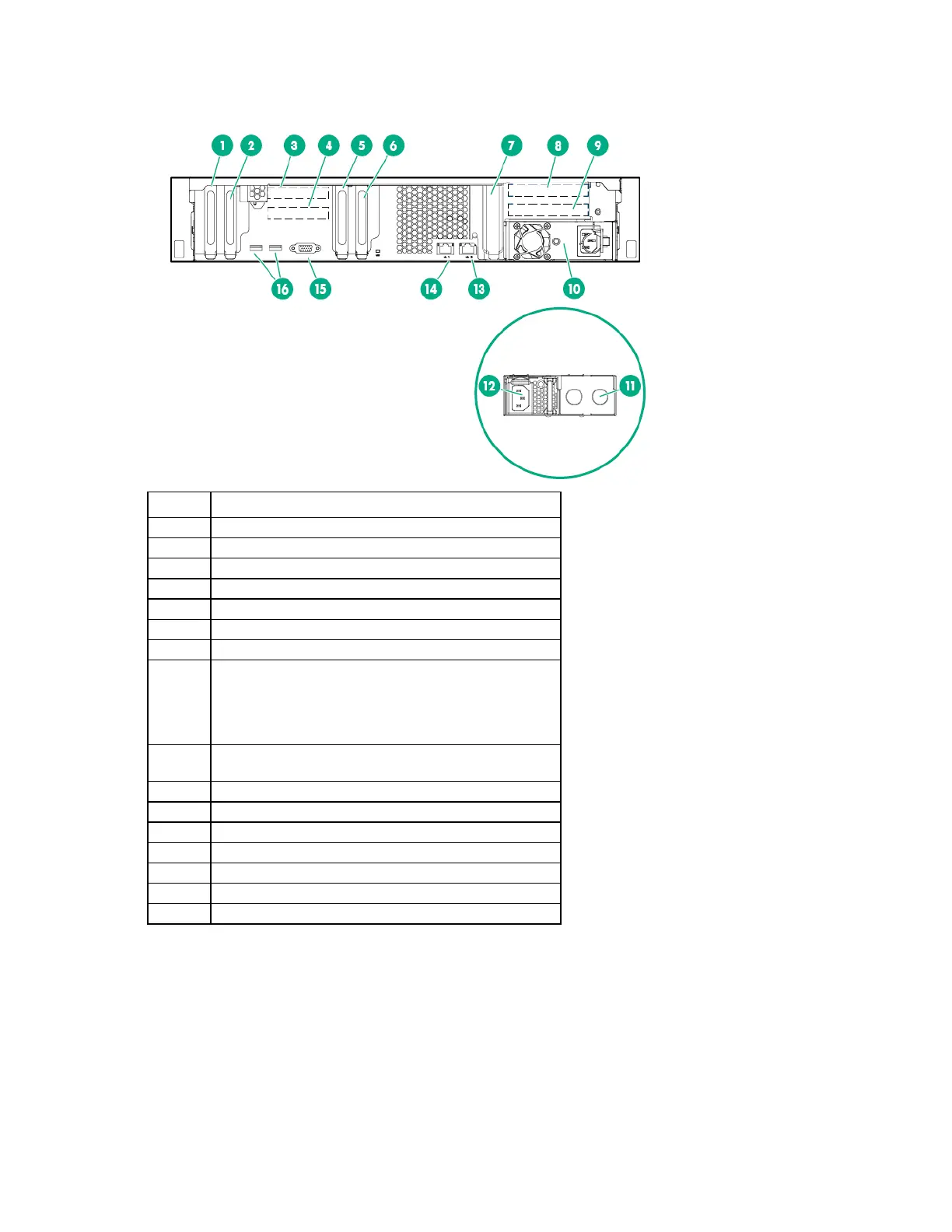

Rear panel components
Item Description
1
Slot 7 PCIe3 x16 (16, 8, 4, 1) low-profile, standup
2
Slot 6 PCIe3 x8 (8, 4, 1) low-profile, standup
3
Slot 4 PCIe3 x8 (8, 4, 1) low-profile, riser (optional)
4
Slot 5 PCIe3 x8 (8, 4, 1) FlexibleLOM riser (optional)
5
Slot 4 PCIe3 x16 (16, 8, 4, 1) low-profile, standup
6
Slot 3 PCIe3 x8 (8, 4, 1) low-profile, standup
7
Slot 1 PCIe3 x16 (16, 8, 4, 1) low-profile, standup
8
Slot 1 PCIe3 x16 (16, 8, 4, 1) full-height, full-length GPU
riser (optional)
or
Slot 1 PCIe3 x8 (8, 4, 1) full-height, half-length riser
(optional)
9
Slot 2 PCIe3 x8 (8, 4, 1) full-height half-length riser
(optional)
10
Non-hot-plug power supply
11
Hot-plug power supply bay 2
12
Hot-plug power supply 1
13
NIC connector 2
14
NIC 1/shared iLO connector
15
Video connector
16
USB 3.0 connectors
