Removal and replacement procedures 79
2.

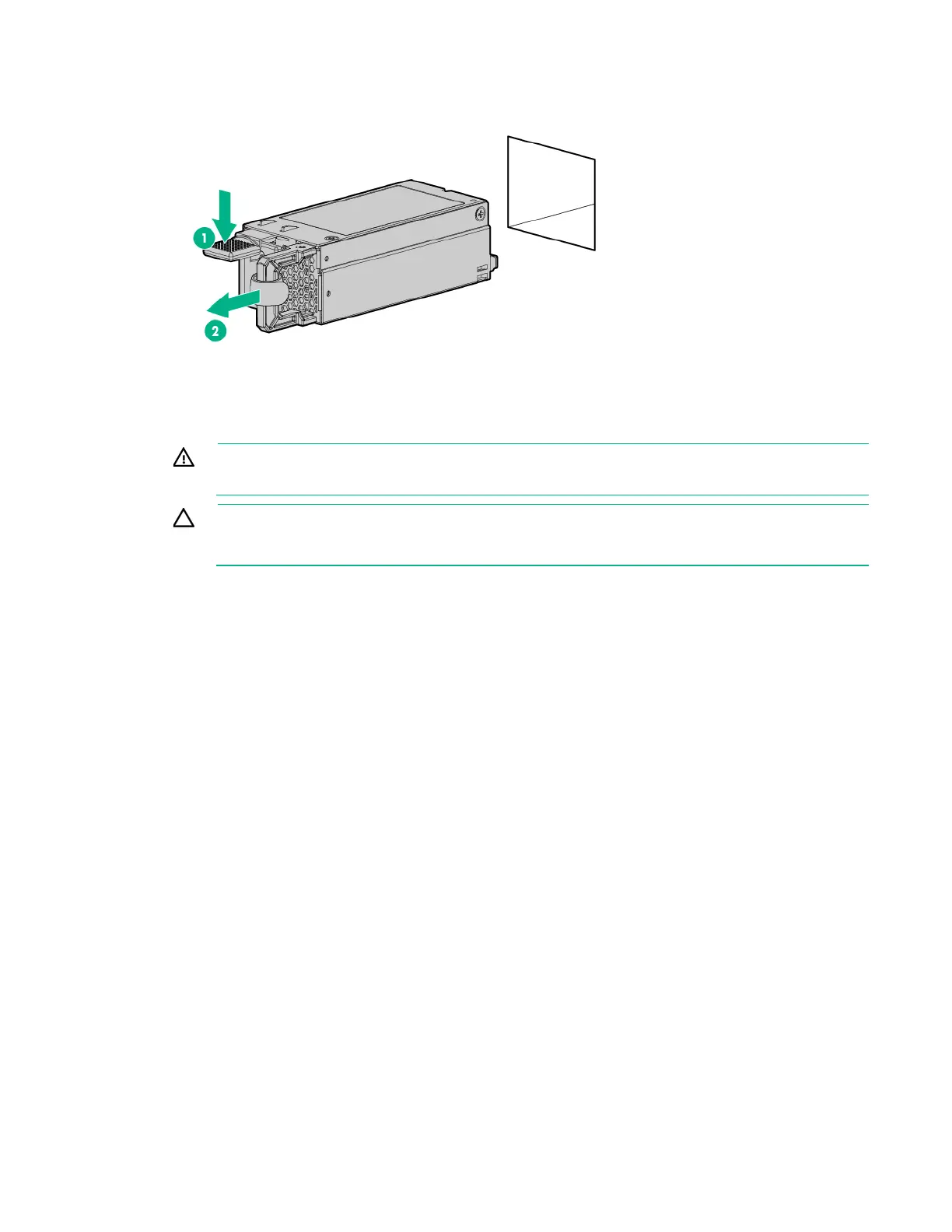

Remove the power input module.
To replace the component, reverse the removal procedure.
RPS backplane
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: To prevent damage to electrical components, take the appropriate anti-static
precautions before beginning any installation, removal, or replacement procedure. Improper
grounding can cause electrostatic discharge.
To remove the component:
1. Power down the server (on page 27).
2. Access the product rear panel (on page 30).
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Remove all installed power input modules ("Hot-plug power input module" on page 78).
5. Remove the server from the rack (on page 30).
6. Place the server on a sturdy, level surface.
7. Remove the air baffle ("Air baffle" on page 36).
8. If the primary PCI riser cage is installed, do the following:
a. Remove the primary PCI riser cage ("Remove the PCI riser cages" on page 31).
