Setup 42
Connect the switch to the router
1. The HP recommended setup configuration is for the server to be connected to the switch LAN port only.
As such, disconnect the Ethernet cable connecting the router LAN port to the server NIC connector.

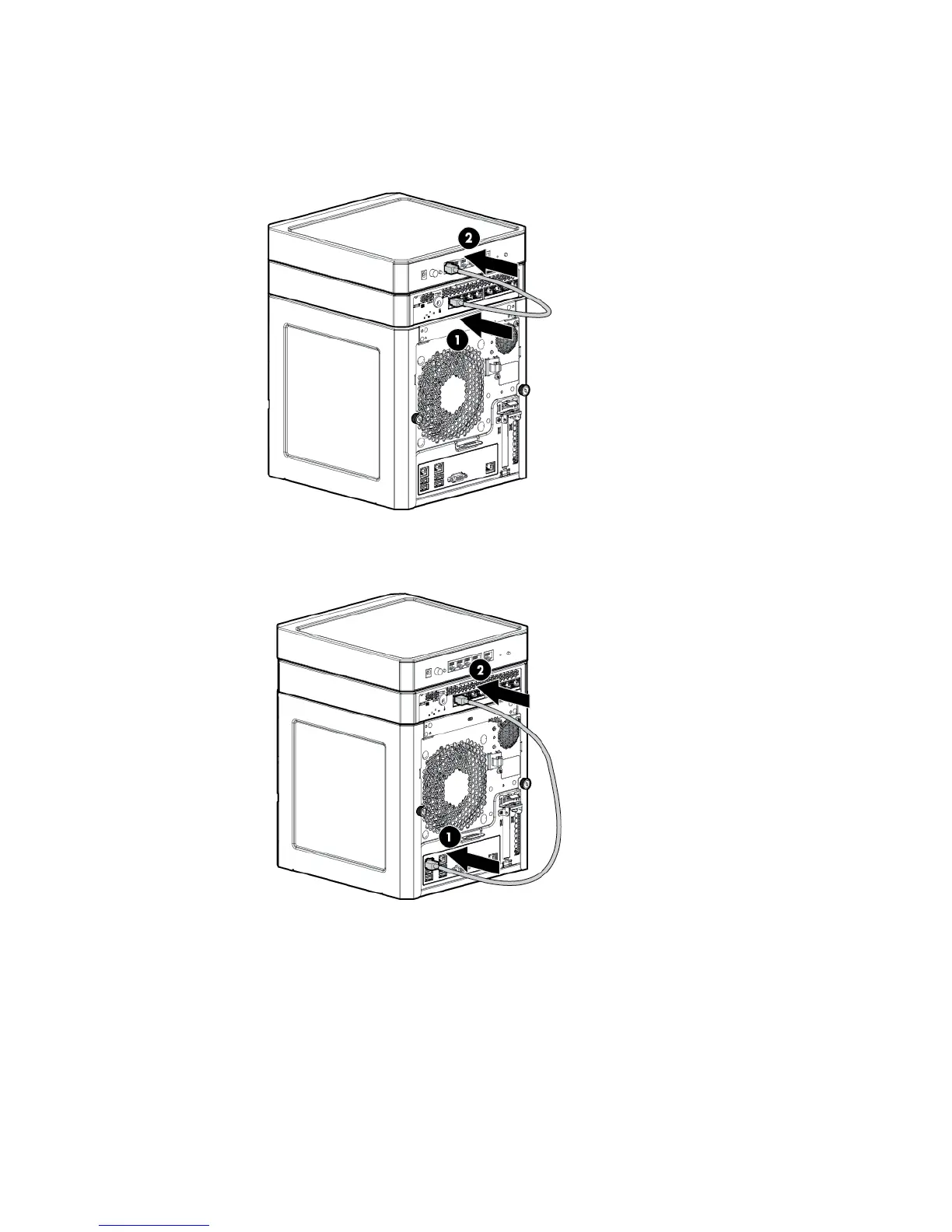

2. Connect an Ethernet cable to a switch LAN port, and then connect the cable to a router LAN port.
3. Connect an Ethernet cable to a switch LAN port , and then connect the cable to the NIC 1 or NIC 2
connector on the server.
Enabling the shared iLO functionality on the MicroServer
The shared iLO functionality on the server is disabled by default. To use this functionality, do the following:
1. Access the iLO RBSU by rebooting the server, and then pressing F8 during POST.
2. Under the Network menu, select the NIC TCP/IP option.
3. Set the Network Interface Adapter field to Shared Network Port — LOM.
4. To save the change, press F10.
