Hardware options installation 54
For cable routing information, see "Optical drive cabling (on page 65)."

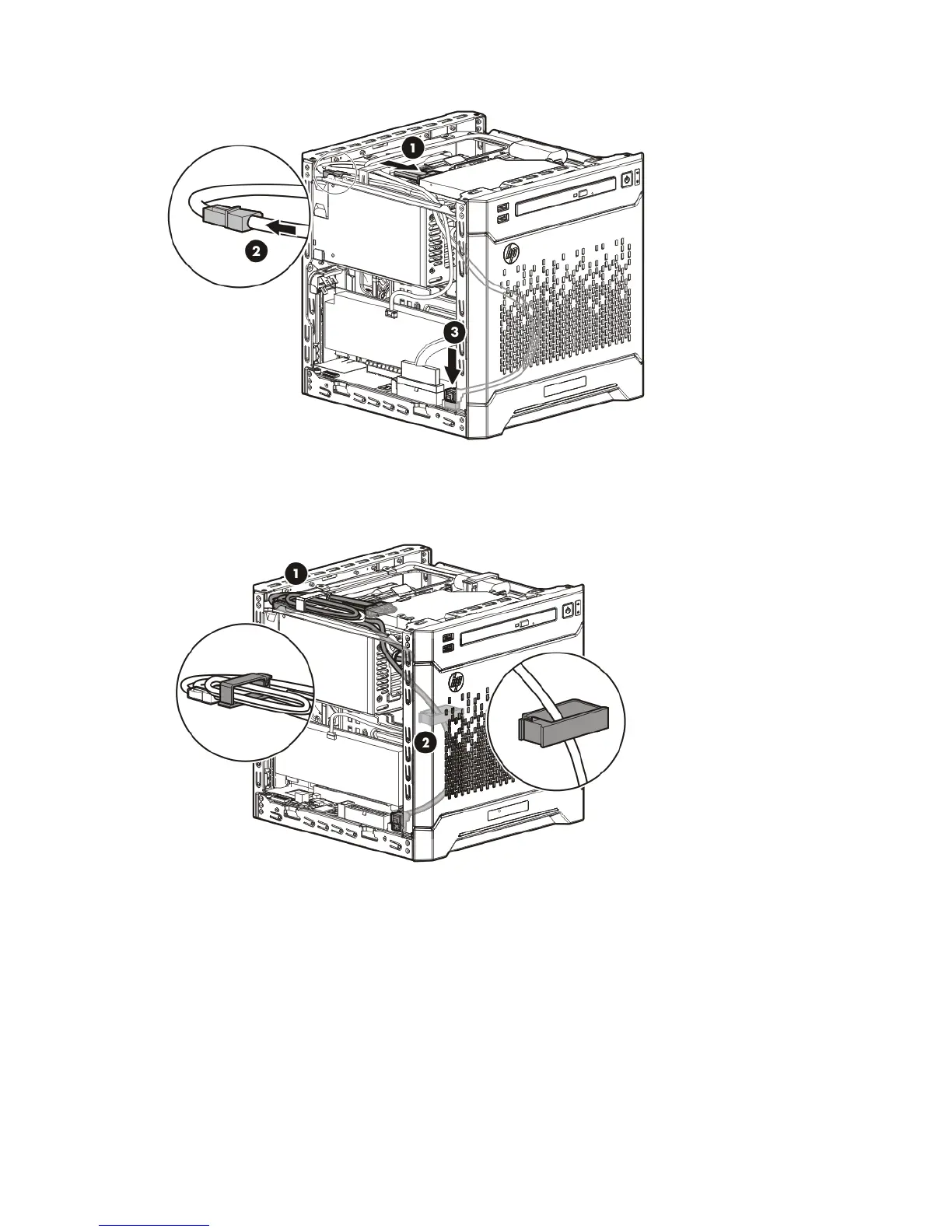

8. Secure the optical drive SATA cable in the designated cable management clips:
a. Secure the excess cable in the top chassis cable clip.
b. Secure the cable in the internal left side chassis cable clip.
9. Install the chassis cover (on page 18).
10. Connect the power cord to the server.
11. Press the Power On/Standby button.
The server exits standby mode and applies full power to the system. The system power LED changes
from amber to green.
Memory options
The server memory subsystem supports UDIMMs only. UDIMMs represent the most basic type of memory
module and offer lower latency and (relatively) low power consumption, but are limited in capacity.
