Hardware options installation 51
d.

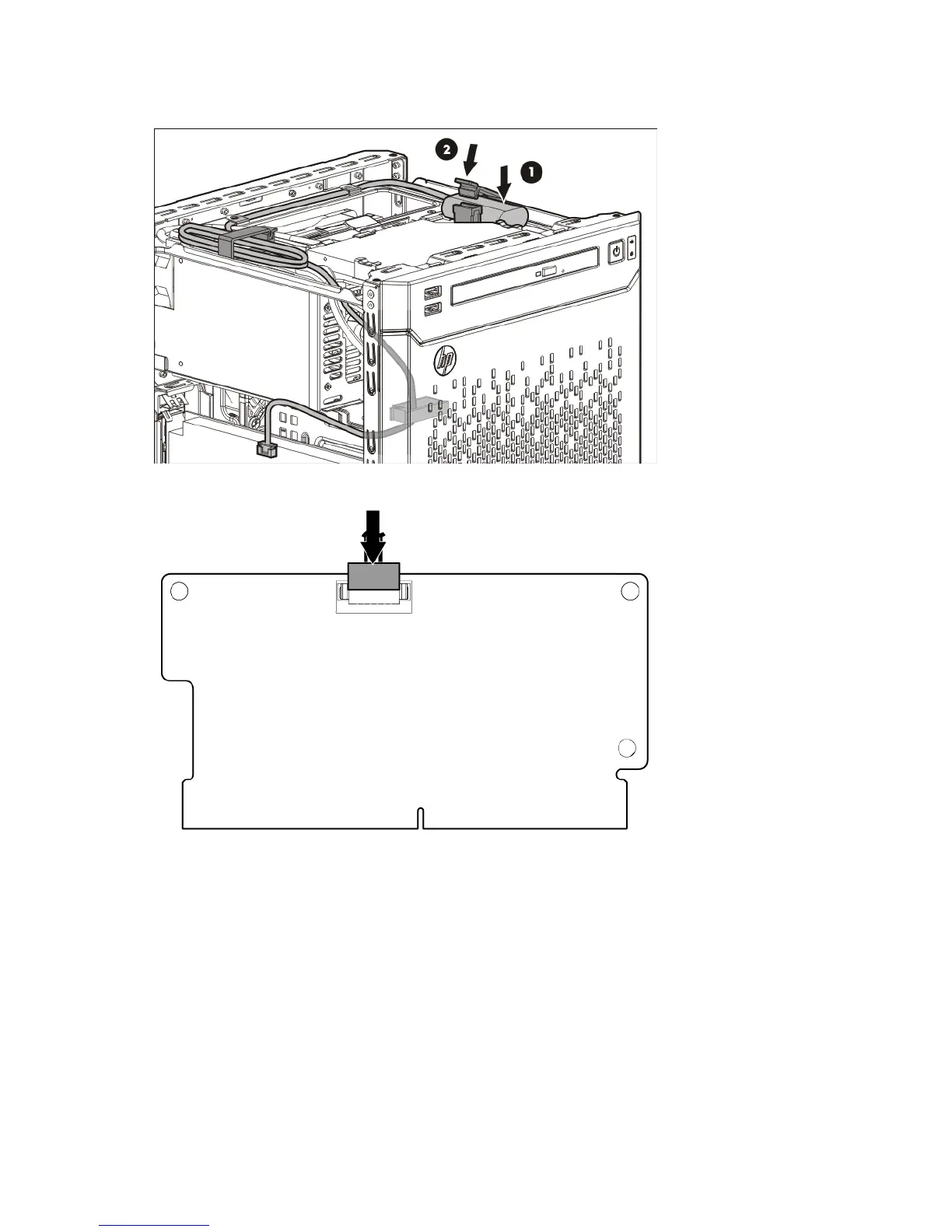

Route the capacitor pack cable through the internal left side chassis opening down to the system
board.
8. Connect the capacitor pack cable to the cache module.
9. Secure the capacitor pack cable in the designated cable management clips:
a. Secure the cable in the two rear side cable clips.
b. Secure the cable in the internal left side chassis cable clip.
