Removal and replacement procedures 31
The server powers down and enters standby mode. The system power LED changes from green to
amber. Power is still applied to the server.
2. Disconnect the power cord from the power source.
3. Disconnect the power cord from the server.

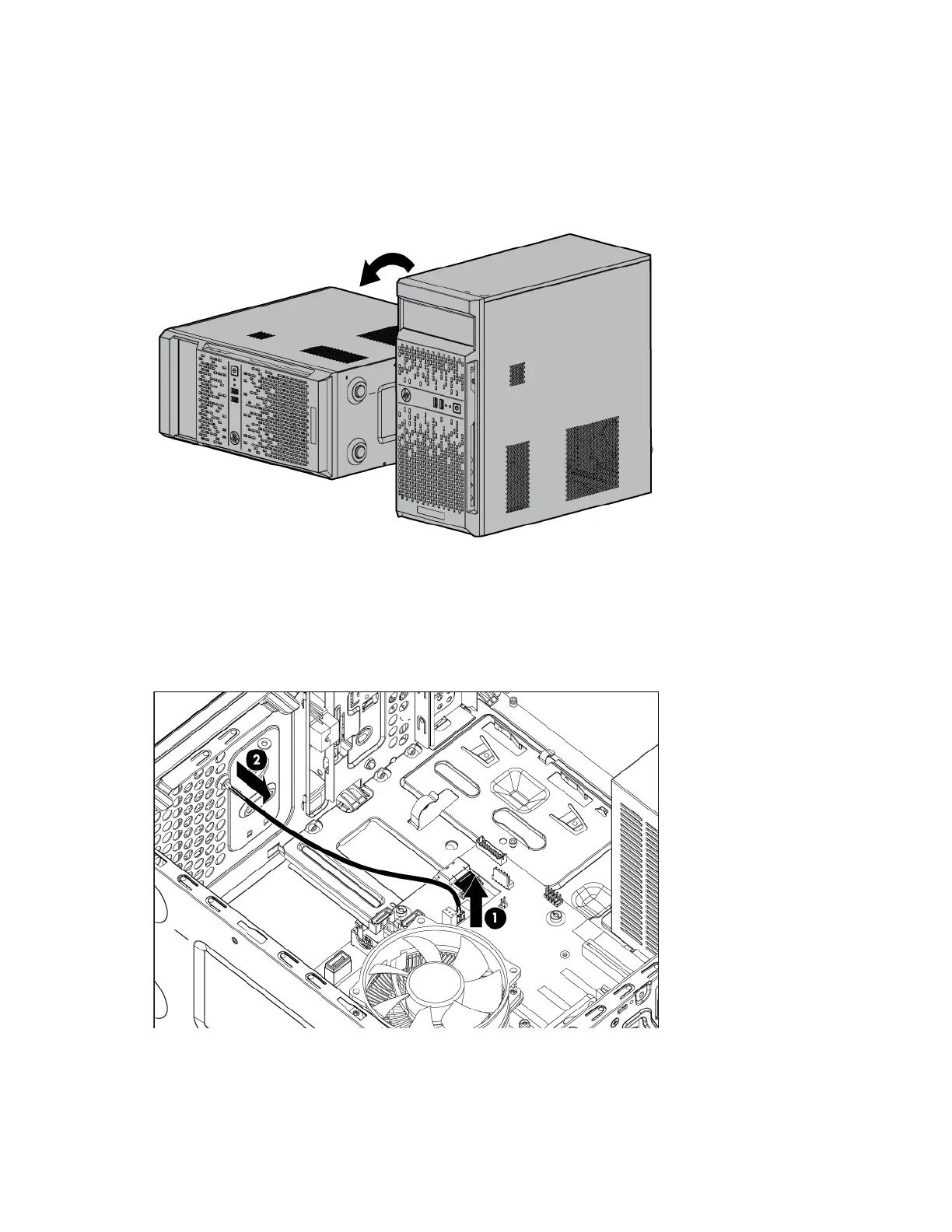

4. Place the server on its side.
5. Remove the access panel (on page 23).
6. Remove the front bezel (on page 24).
7. Remove the ambient temperature sensor cable:
a. Disconnect the cable from the system board connector.
b. Detach the cable end with the rubber stopper from the chassis.
