Removal and replacement procedures 33
6.

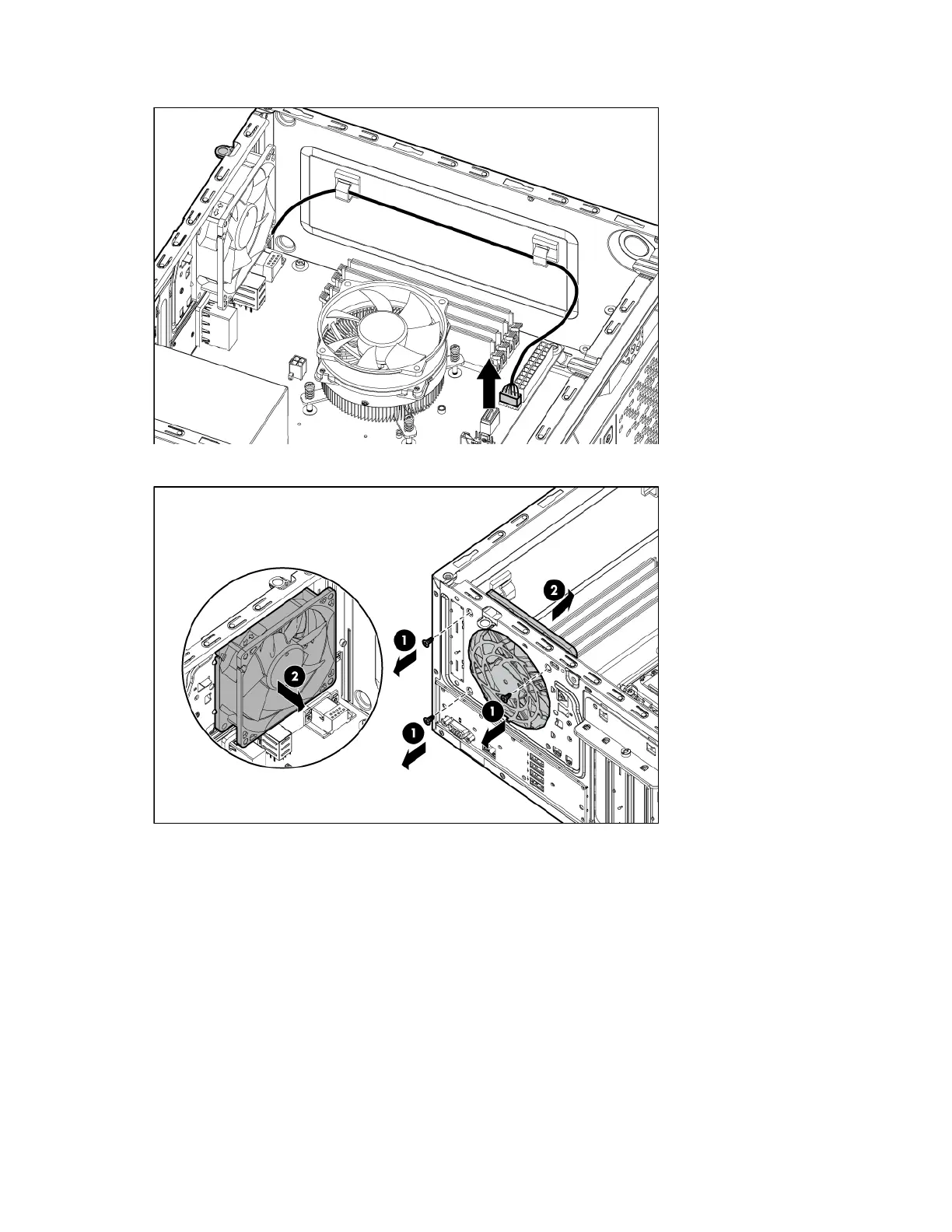

Disconnect the fan cable from the system board connector.
7. Remove the screws securing the system fan, and then remove the fan.
To replace the component, reverse the removal procedure.
Integrated power supply
To remove the component:
1. Press the Power On/Standby button.
The server powers down and enters standby mode. The system power LED changes from green to
amber. Power is still applied to the server.
2. Disconnect the power cord from the power source.
3. Disconnect the power cord from the server.
