Removal and replacement procedures 29
10.

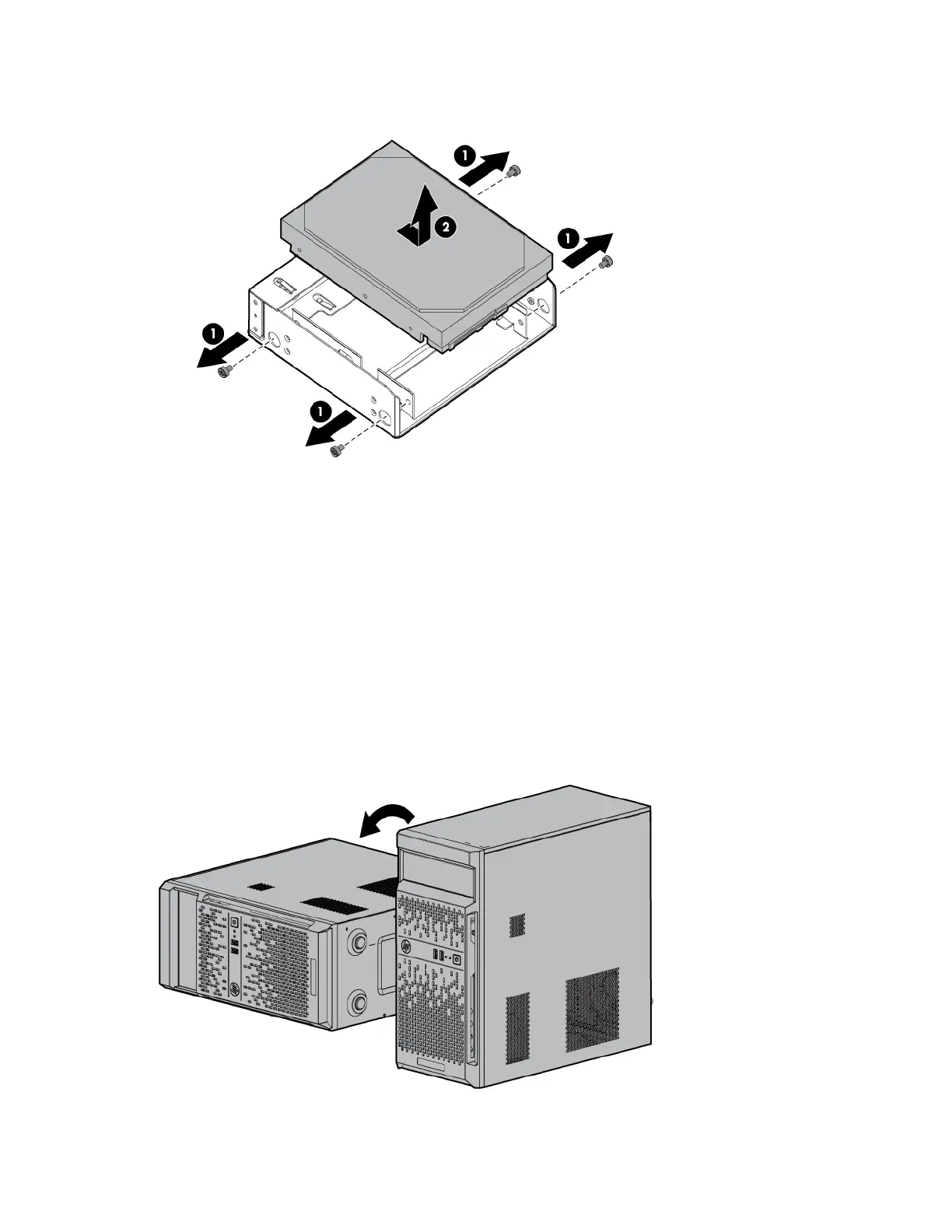

Loosen and remove the four screws securing the LFF drive, and then remove the drive from the drive
carrier.
To replace the component, reverse the removal procedure.
Front I/O module
To remove the component:
1. Press the Power On/Standby button.
The server powers down and enters standby mode. The system power LED changes from green to
amber. Power is still applied to the server.
2. Disconnect the power cord from the power source.
3. Disconnect the power cord from the server.
4. Place the server on its side.
