HP ProLiant ML10 - Secondary LFF Drive and Drive Carrier

Removal and replacement procedures 27

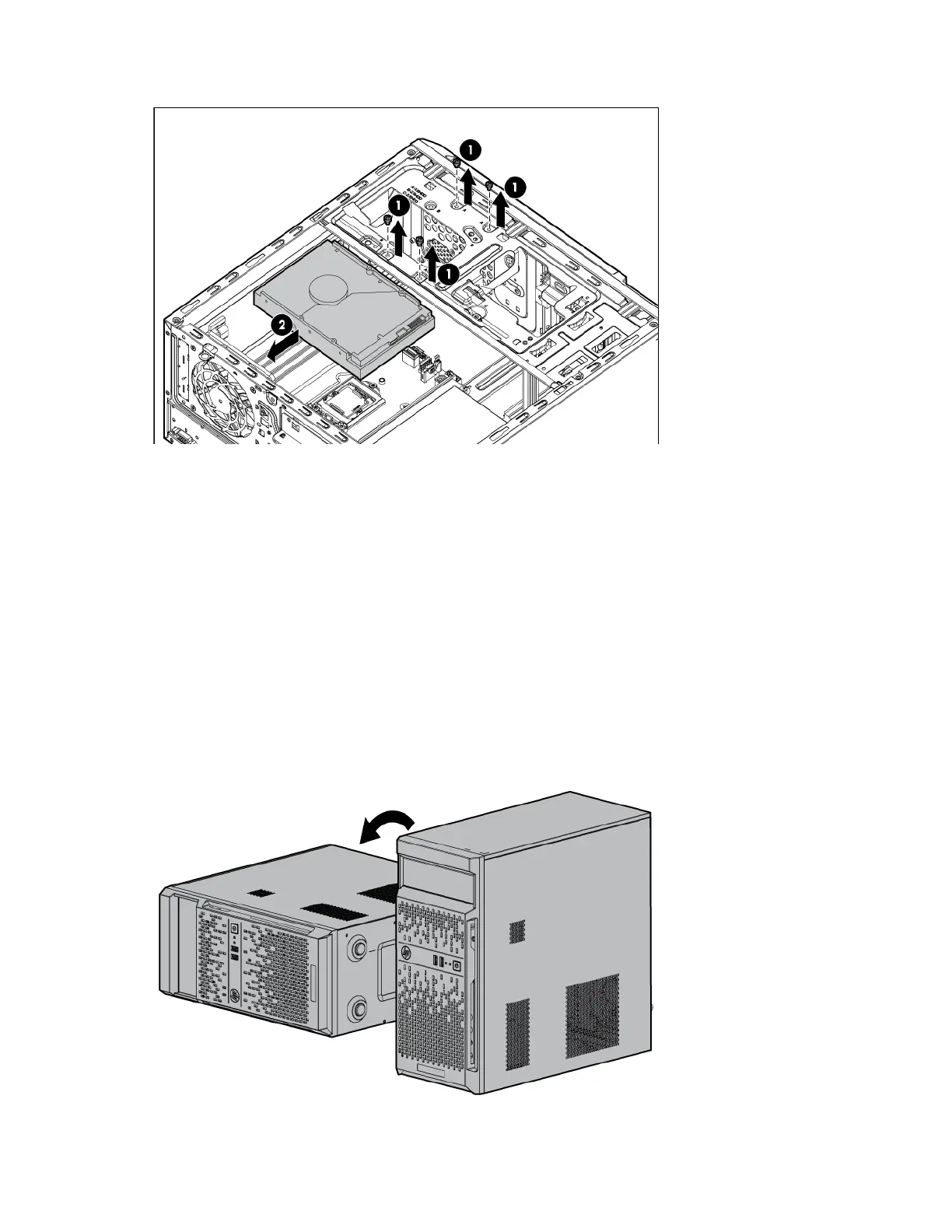

b.
Slide out the drive to remove it.
To replace the component, reverse the removal procedure.
Secondary LFF drive and drive carrier
To remove the component:
1. Back up all data on the hard drive.
2. Press the Power On/Standby button.
The server powers down and enters standby mode. The system power LED changes from green to
amber. Power is still applied to the server.
3. Disconnect the power cord from the power source.
4. Disconnect the power cord from the server.
5. Place the server on its side.
