Removal and replacement procedures 35
7.

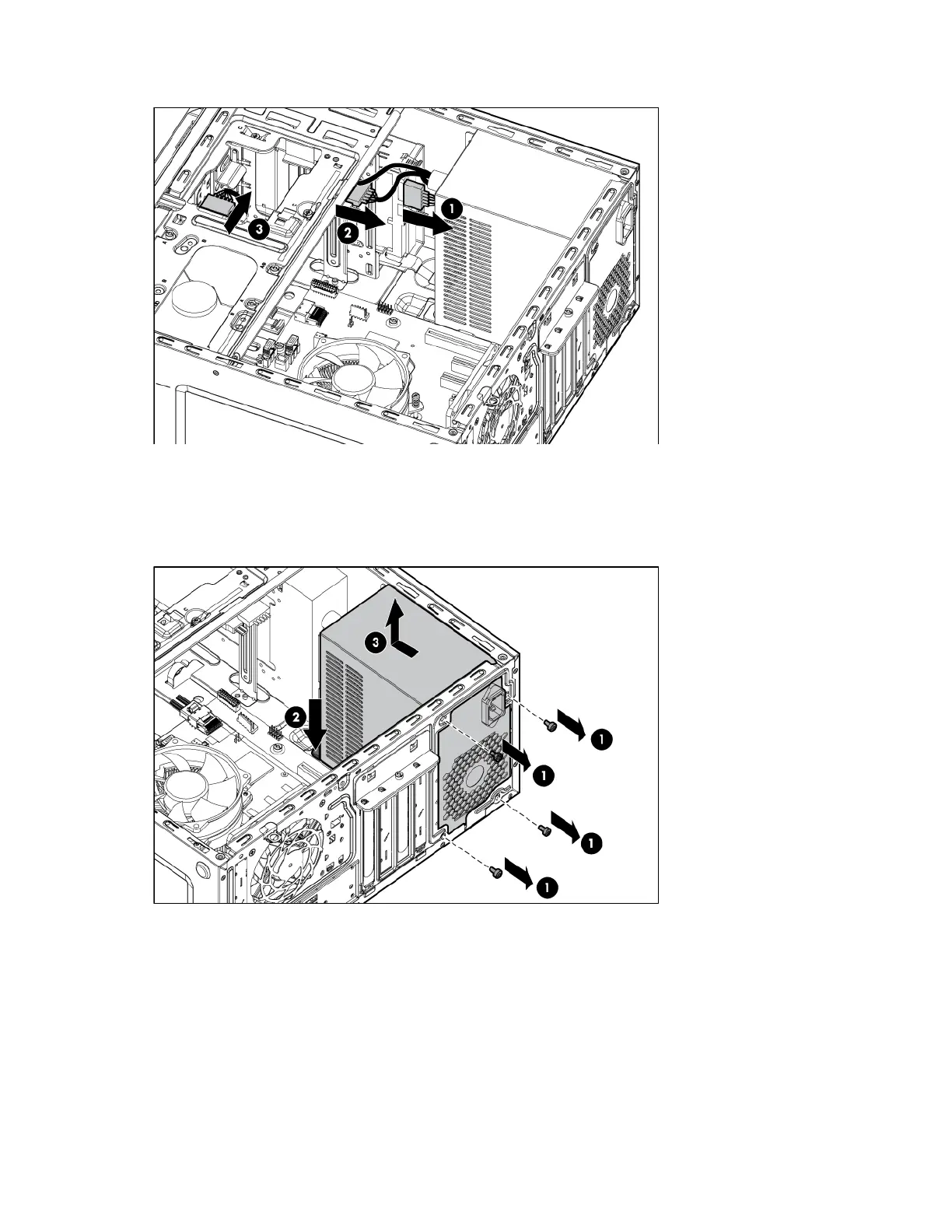

Disconnect the power supply cables from all installed drives.
8. Remove the power supply:
a. Remove the four T-15 screws from the rear side of the power supply.
b. Push and hold down the lever at the bottom of the power supply.
c. Slide the power supply out, and then remove it.
To replace the component, reverse the removal procedure.
Expansion slot cover
To remove the component:
1. Press the Power On/Standby button.
The server powers down and enters standby mode. The system power LED changes from green to
amber. Power is still applied to the server.
