HP ProLiant ML10 - Rear panel components

Component identification 7
Item Description Status
1
NIC link/activity LED Green = Network link
Flashing green = Network link and activity
Off = No link to network (If the power is off, view the rear panel NIC
LEDs for status.)
2
System health LED
Green = Normal
Amber = System degraded
Red = System critical
3
System power button/LED Green = System on
Amber = System in standby, but power is still applied
Off = Power cord not attached or power supply failed
4
Optical drive activity LED Flashing green = Drive active
Off = No drive activity

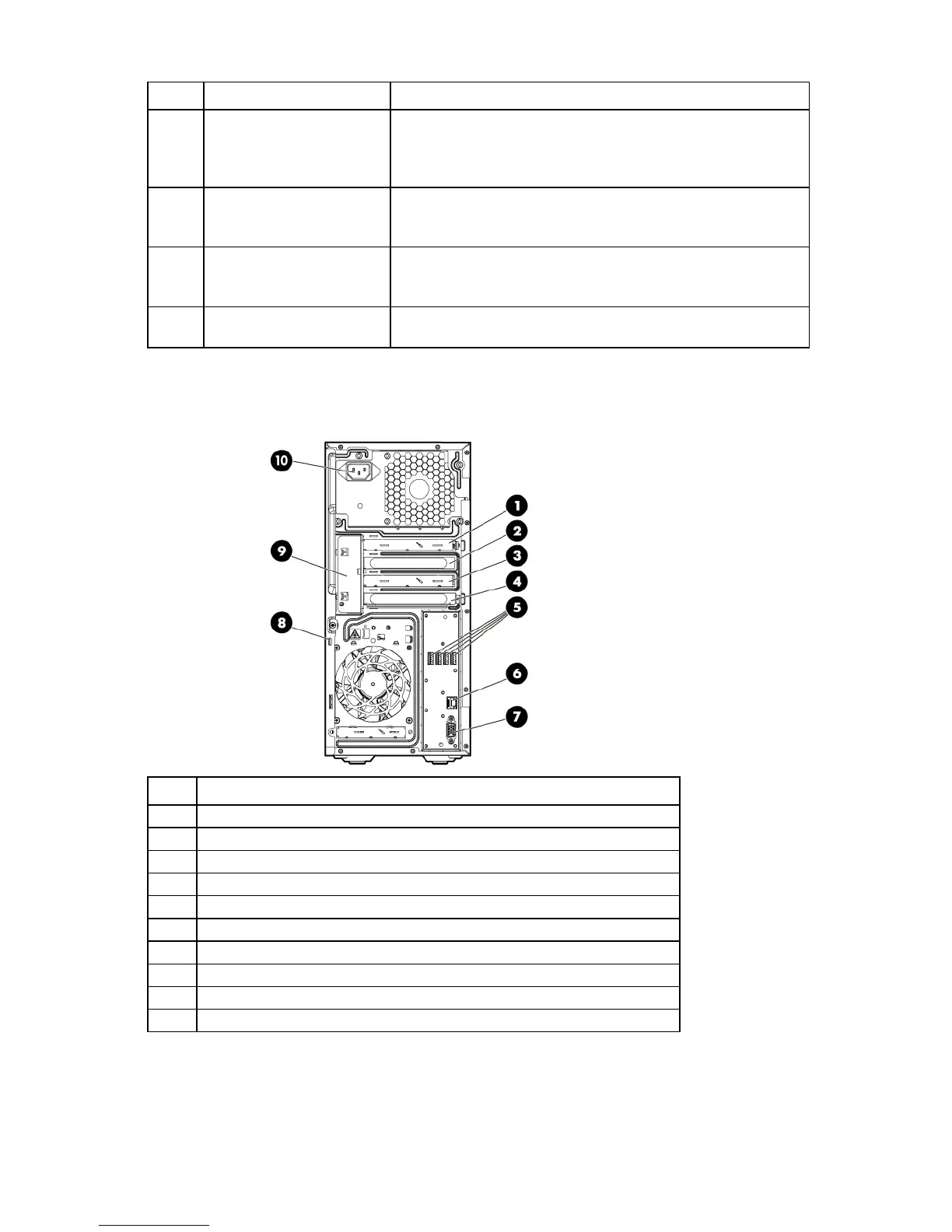

Rear panel components
Item Description
1
Slot 1 PCIe2x16 (16, 8, 4, 1)*
2
Slot 2 PCIe2x8 (4, 1)
3
Slot 3 PCIe2x8 (4, 1)
4
Slot 4 PCIe2x4 (1)
5
USB connectors (4)
6
NIC connector
7
Video connector
8
Kensington security slot
9
PCIe slot cover retainer
10
Power cord connector
*PCIe3 with E3-1220 v2 processor
