HP ProLiant ML10 User Manual

Operations 14
2.
The server powers down and enters standby mode. The system power LED changes from green to
amber. Power is still applied to the server.
3. Disconnect the power cord from the power source.
4. Disconnect the power cord from the server.
5. Remove the access panel (on page 12).

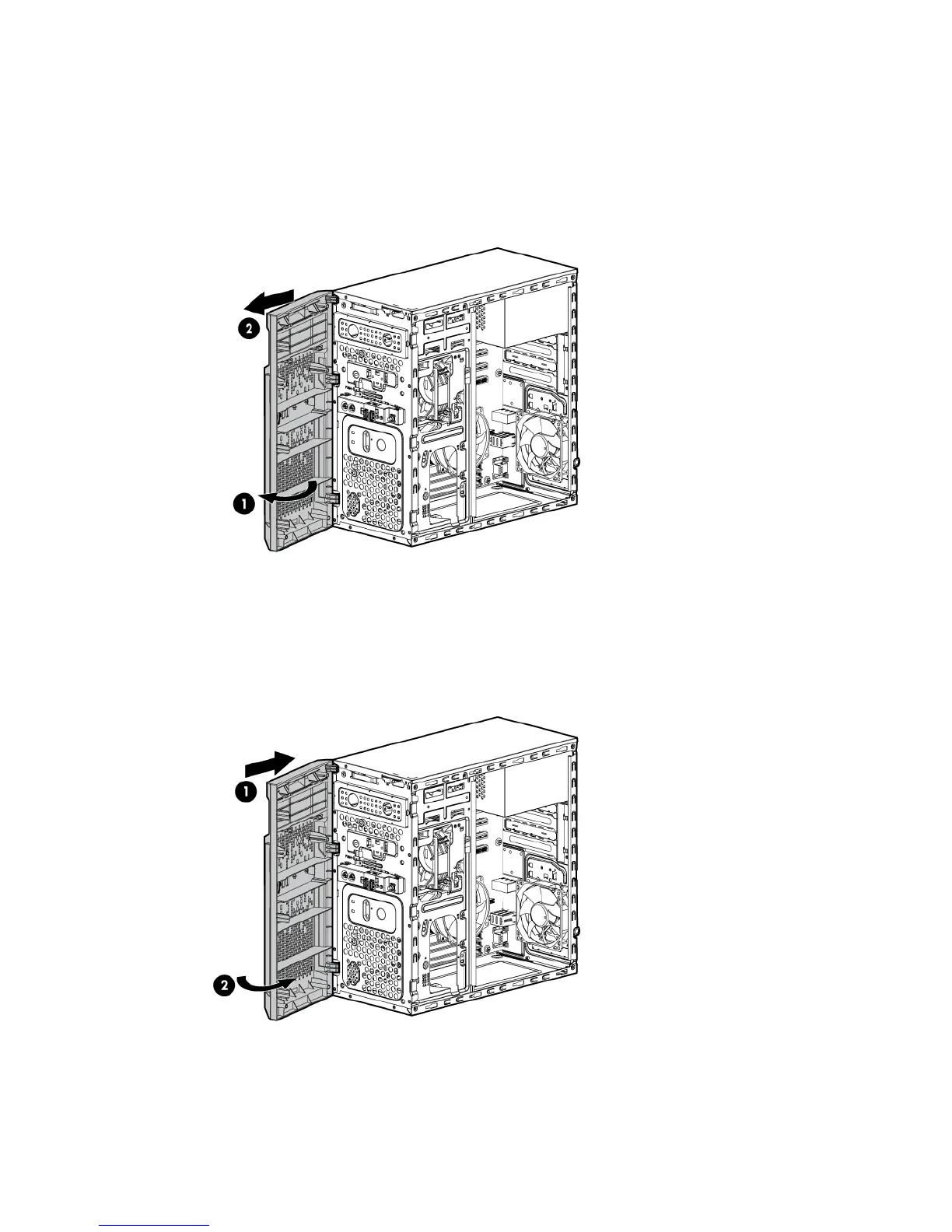

6. Remove the front bezel.
Install the front bezel
1. Insert the tabs on the front bezel into the slots on the front chassis.
2. Close the front bezel.
Install the access panel

HP ProLiant ML10 Specifications

General

Memory Slots	4
Form Factor	Tower
Processor	Intel Xeon E3-1200 v3
Memory	Up to 32 GB
Drive Bays	4 LFF
Power Supply	300W
Chipset	Intel C222
Expansion Slots	1 PCIe 3.0 x16, 1 PCIe 2.0 x1
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
RAID Support	Integrated SATA RAID controller (Intel Rapid Storage Controller); optional HP Smart Array controllers
