Hardware options installation 40
Expansion board options
1. Press the Power On/Standby button.
The server powers down and enters standby mode. The system power LED changes from green to
amber. Power is still applied to the server.
2. Disconnect the power cord from the power source.
3. Disconnect the power cord from the server.

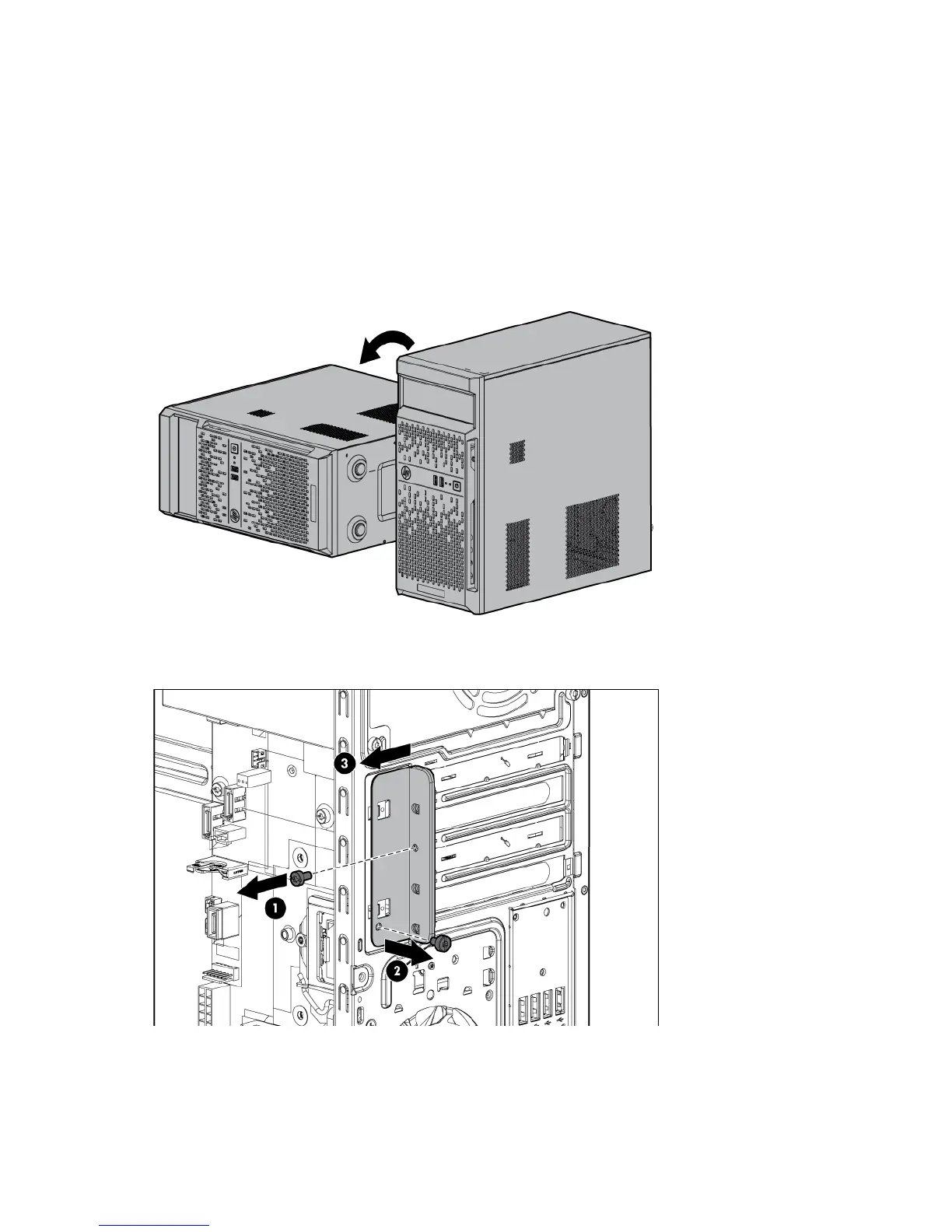

4. Place the server on its side.
5. Remove the access panel (on page 12).
6. Remove the expansion slot cover retainer.
7. Remove the expansion slot cover.
a. If installing the expansion board in PCIe slots 1 or 3, push and remove the slot cover attached to the
chassis.
