Component identification 11
Item Description Status
8
NIC 1 link LED Green = Linked to network
Off = Not linked to network
9
NIC 1 activity LED Green or flashing = Network activity
Off = No network activity

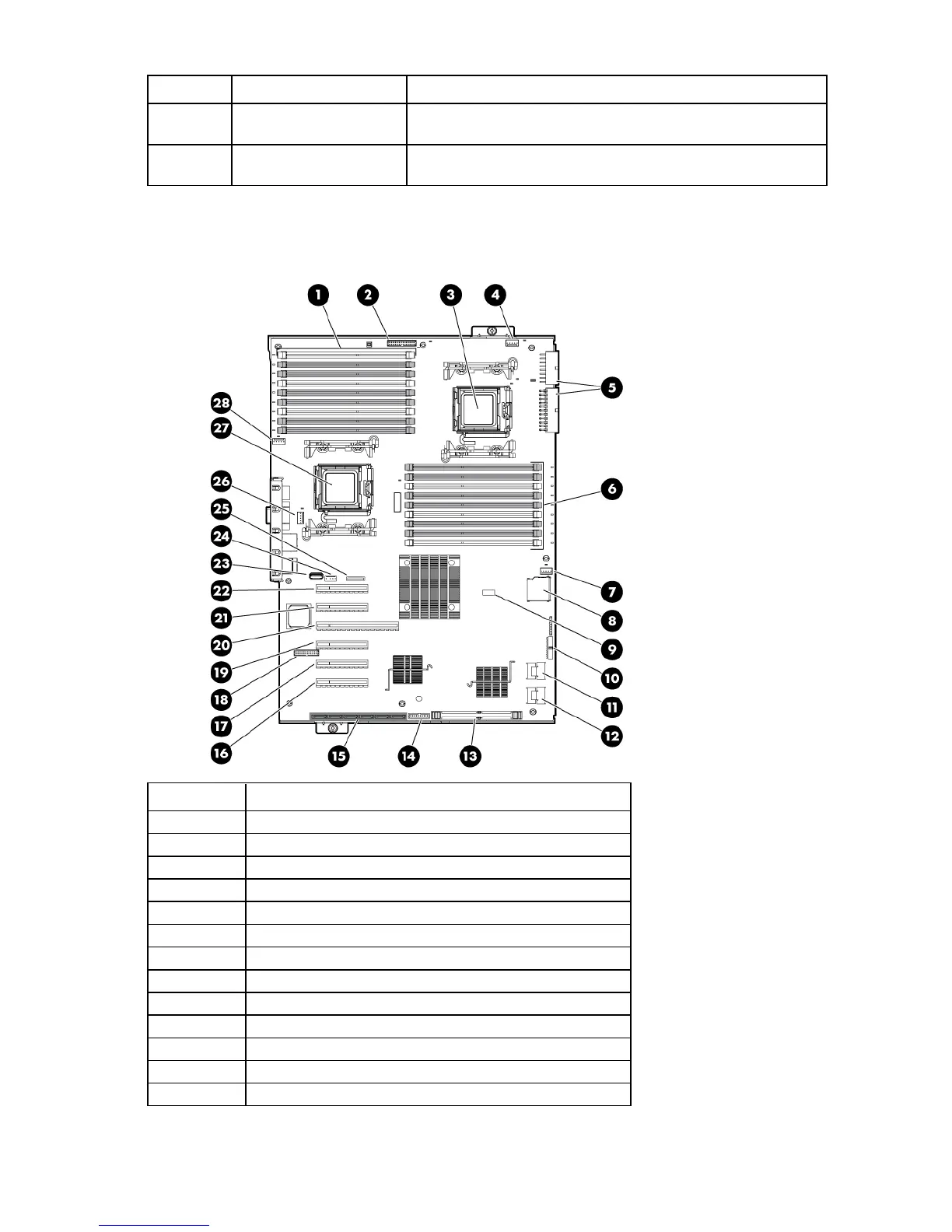

System board components
Item Description
1
Processor 1 DIMM slots
2
Power supply backplane connector
3
Processor socket 2
4
System fan 4 connector
5
6
Processor 2 DIMM slots
7
System fan 3 connector
8
SD card slot (non-hot-plug)
9
System maintenance switch
10
Front panel LED board connector
11
SAS connector B
12
SAS connector A
13
HP Smart Array P410i memory connector
