Hardware options installation 65

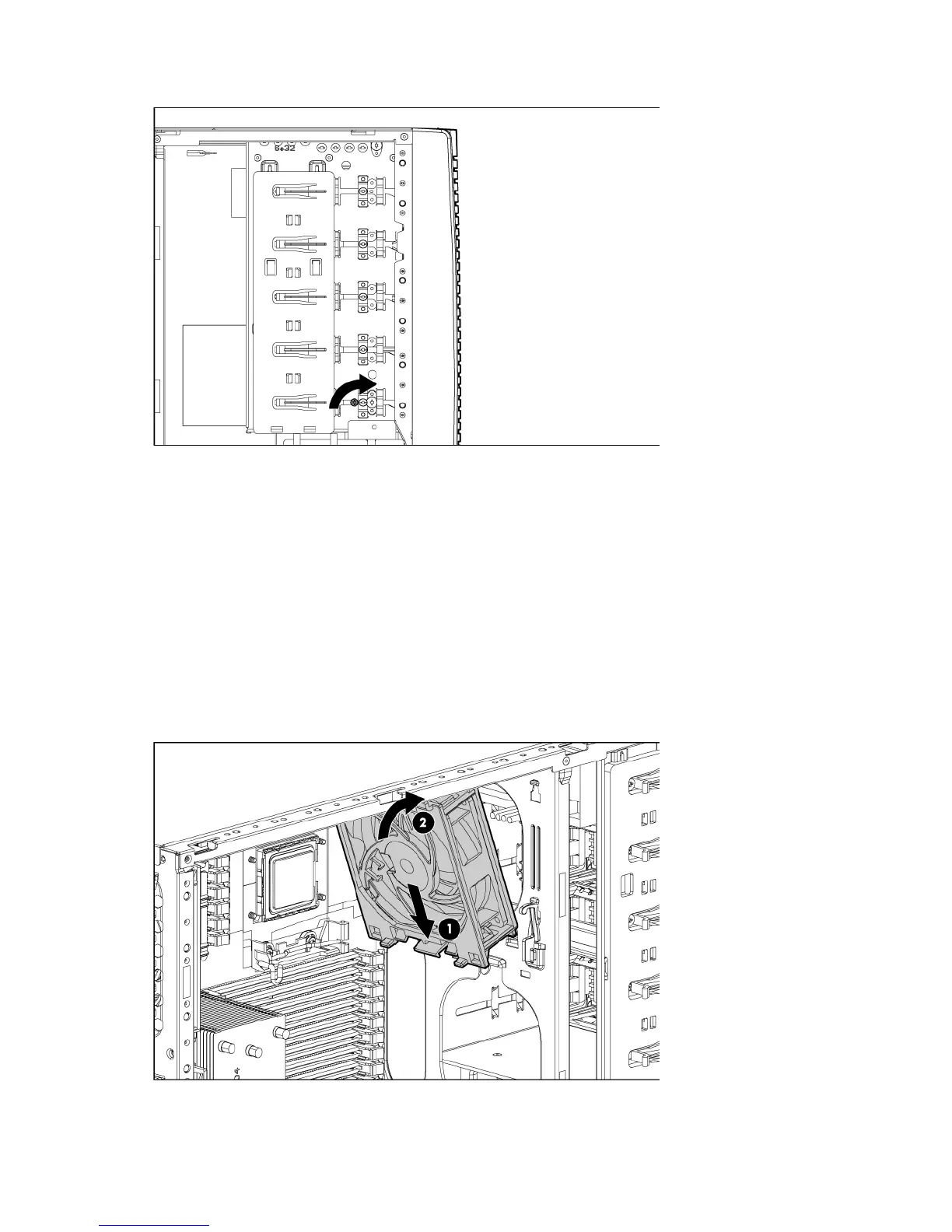

4. Install the silver shipping screw into the full-height device.
Redundant fan assembly option
To install the component:
1. Power down the server (on page 24).
2. Do one of the following:
o Open or remove the tower bezel, as needed ("Open or remove the tower bezel" on page 25).
o Extend the server from the rack (on page 24).
3. Remove the access panel (on page 26).
4. Remove the fan blank from fan bay 4 ("Remove a fan blank" on page 29).
5. Install the fan in fan bay 4.
6. Connect the fan cable to the system board ("System board components" on page 11).
