Component identification 13

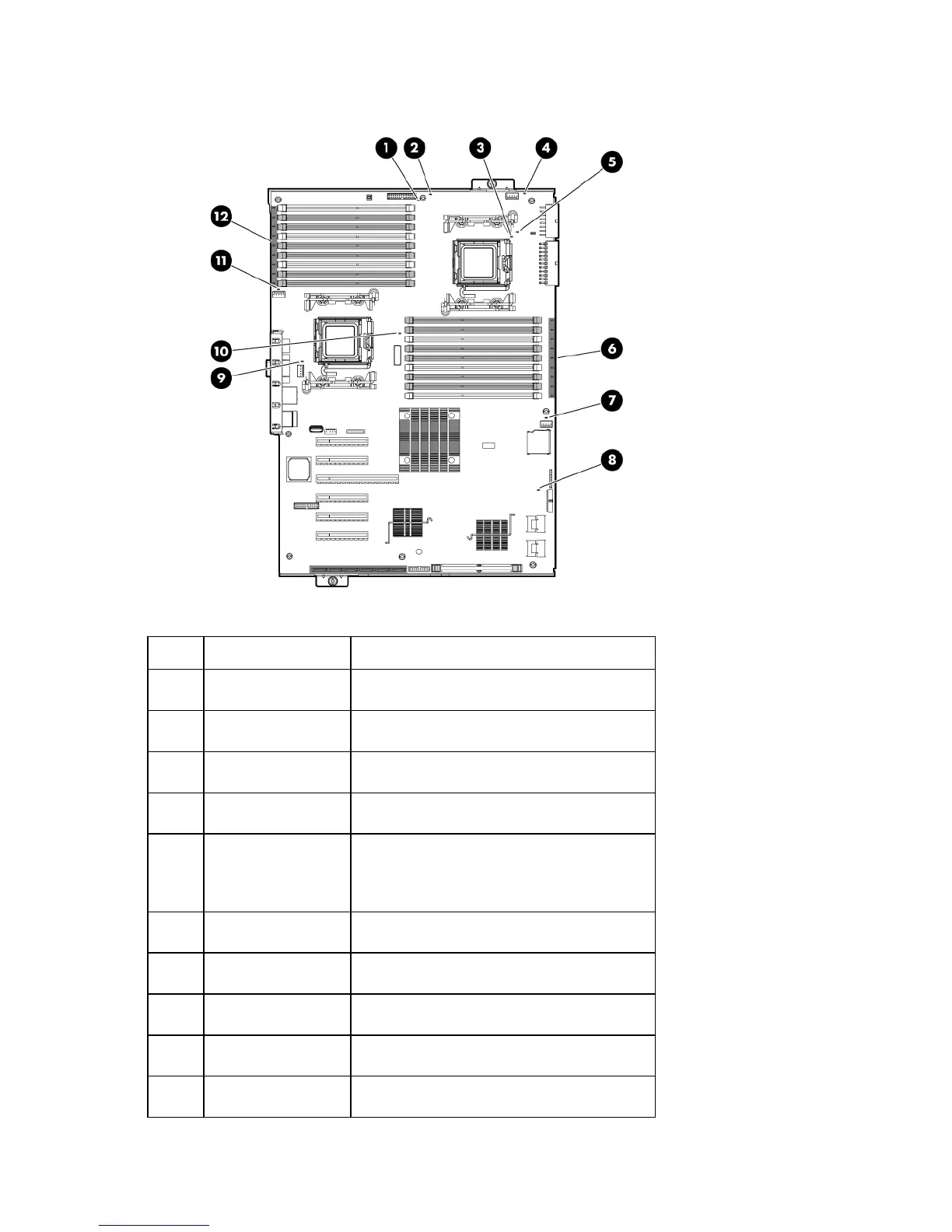

System board LEDs
Item Description Status
1
Power supply 1 Amber = No AC power or failed power supply
Off = Power supply is on and functioning.
2
Power supply 2 Amber = No AC power or failed power supply
Off = Power supply is on and functioning.
3
Processor 2 Amber = Processor 2 failed.
Off = Processor 2 is functioning.
4
Amber = Fan is missing or has failed.
Off = Fan is functioning.
5
AMP status Green = AMP mode is enabled.
Amber = Failover has occurred, or the
configuration is not valid.
Off = AMP mode is disabled.
6
Processor 2 DIMMs Amber = An error has occurred.
Off = Normal operation
7
System fan 3 Amber = Fan is missing or has failed.
Off = Fan is functioning.
8
Overtemperature Amber = System temperature threshold exceeded
Off = Normal operation
9
System fan 2 Amber = Fan is missing or has failed.
Off = Fan is functioning.
10
Processor 1 Amber = Processor 1 failed.
Off = Processor 1 is functioning.
