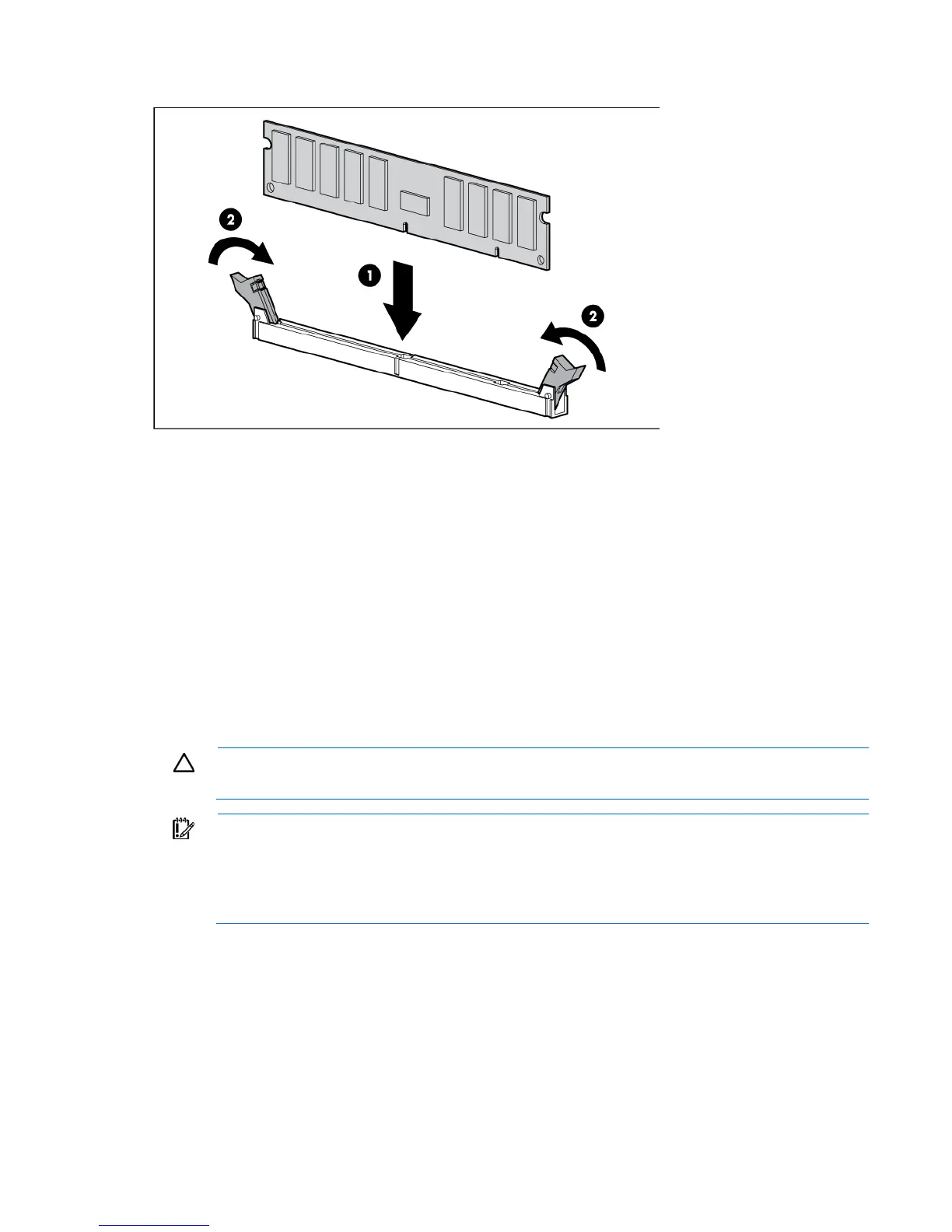

8. Install the DIMM.
9. Install a fan, if removed.
10. Install the DIMM baffle.
11. Install the large redundant fan air baffle, if removed.
12. Install the access panel (on page 27).
13. Do one of the following:
o Close or install the tower bezel, as needed.
o Slide the server back into the rack.
14. Power up the server (on page 24).
After installing DIMMs, configure the AMP mode in RBSU ("HP ROM-Based Setup Utility" on page 92).
SAS or SATA hard drive option
CAUTION: For proper cooling, do not operate the server without the access panel, baffles,
expansion slot covers, hard drives, or blanks installed.
IMPORTANT:
When installing a x3/x1 SAS cable in an SFF system, HP recommends connecting
the x3 part of the x3/x1 cable to the SAS hard drive backplane connector that corresponds to
hard drive slots 1 to 4. In this setup, hard drive slot 1 is not available, but because hard drive slots
2 to 4 are connected, one continuous volume can be created. All drive slots are available in LFF
systems.
