Hardware options installation 56

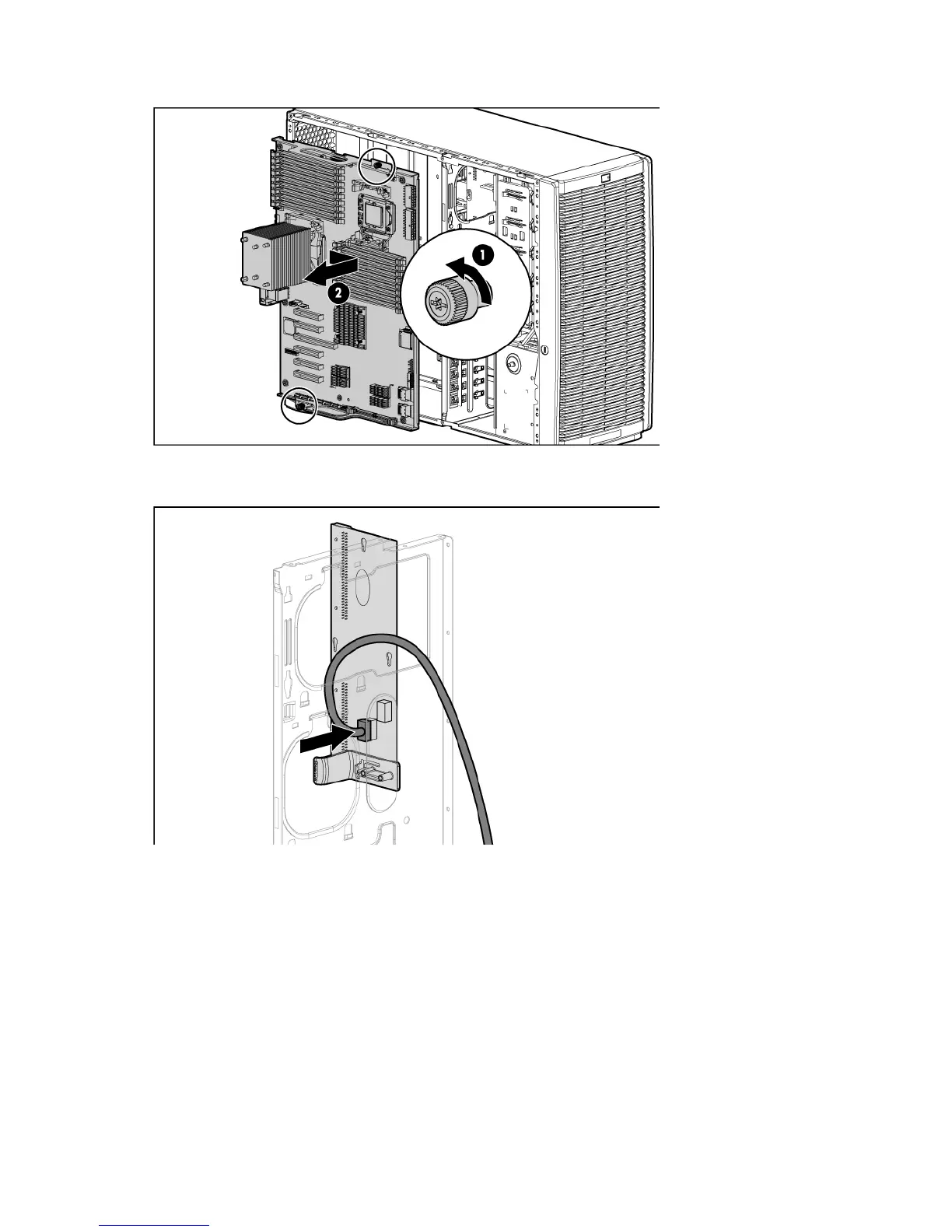

10. Using the system board tray handles, slide the tray forward and remove the system board.
11. Connect the power cable from the option kit to the power supply backplane. Be sure to thread the
cables through the hole in the center wall.
12. Install the system board.
13. Tighten the thumbscrews.
14. Connect all cables to the system board.
15. Install all fans.
16. Install all DIMM baffles.
17. Install the large redundant fan air baffle, if removed.
18. Install all expansion boards.
