Hardware options installation 60

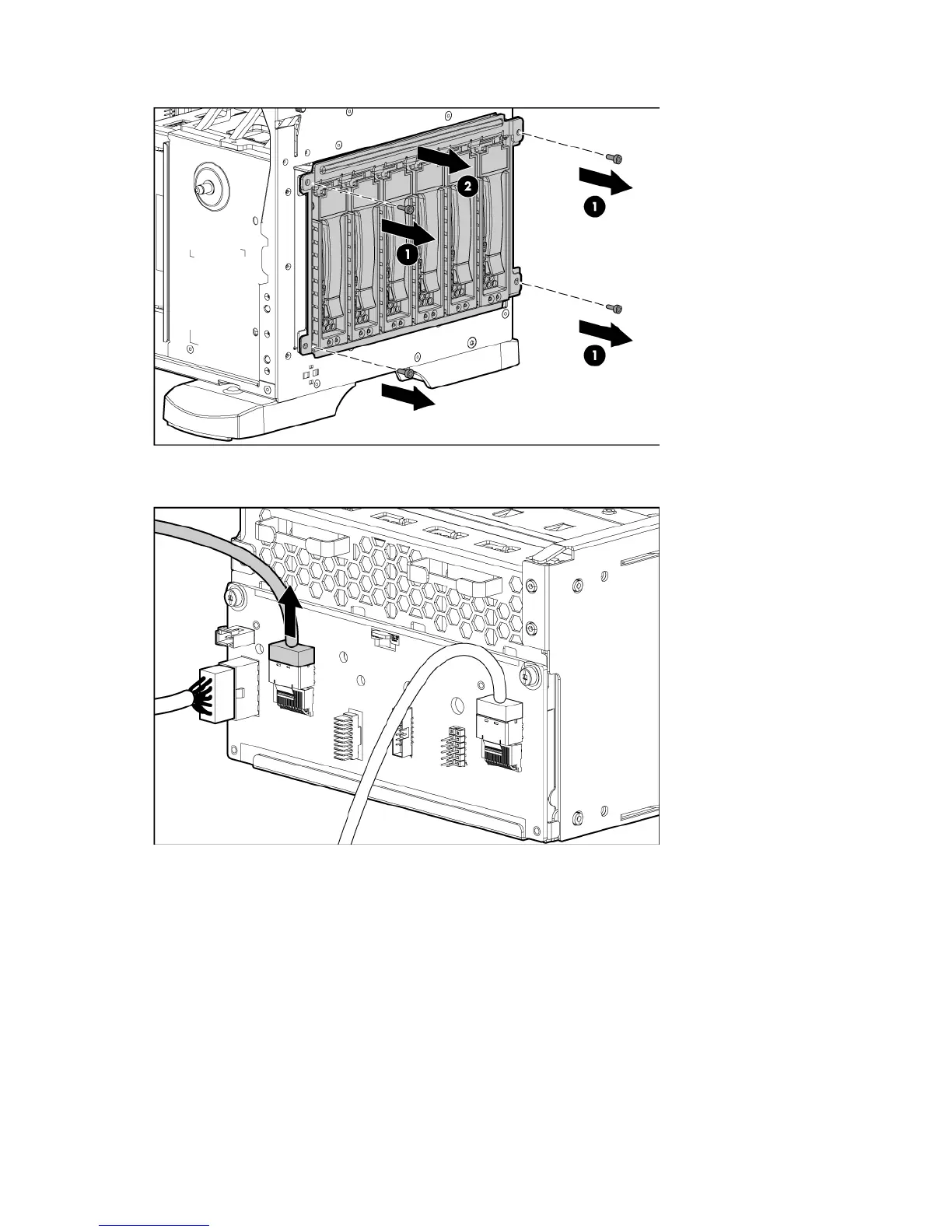

4. Extend the primary hard drive cage from the chassis.
5. Disconnect the existing SAS cable from the SAS connector labeled "4 and 5" on the primary drive
cage. Retain the original SAS cable for future use.
6. Connect the following cables:
o The LED cable to the optional hard drive cage
