Hardware options installation 75

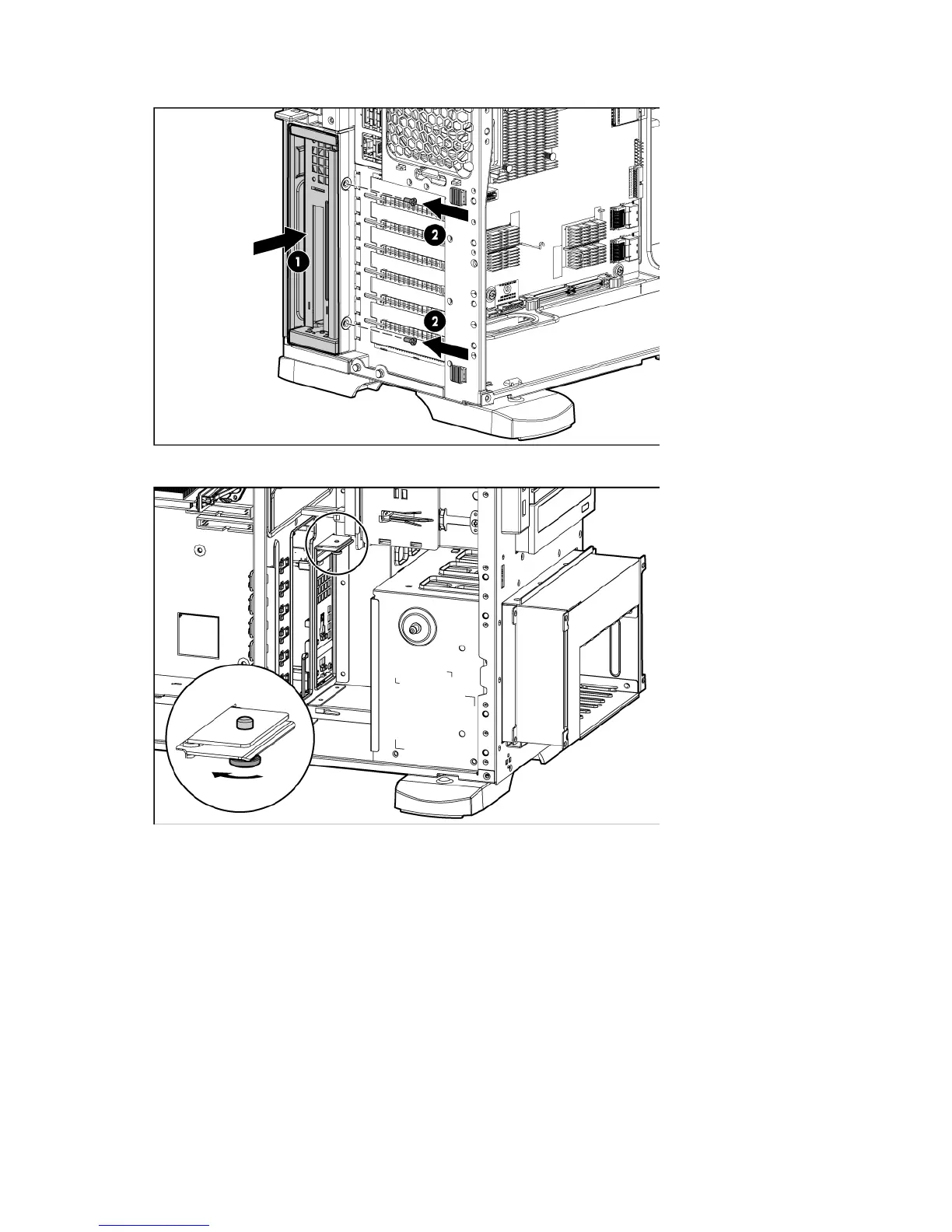

10. Install the PCI-X expansion cage. Secure the assembly with the screws from the rear access panel.
11. Turn the spring-loaded locking pin until it locks into the chassis.
12. Open the expansion board retainer.
13. Remove the expansion board or the expansion slot cover for expansion slot 1 ("Removing the
expansion slot cover" on page 69). The PCI-X expansion cage is supported only by slot 1.
14. Install the included PCI Express conversion card into expansion slot 1.
