Hardware options installation 74
13.

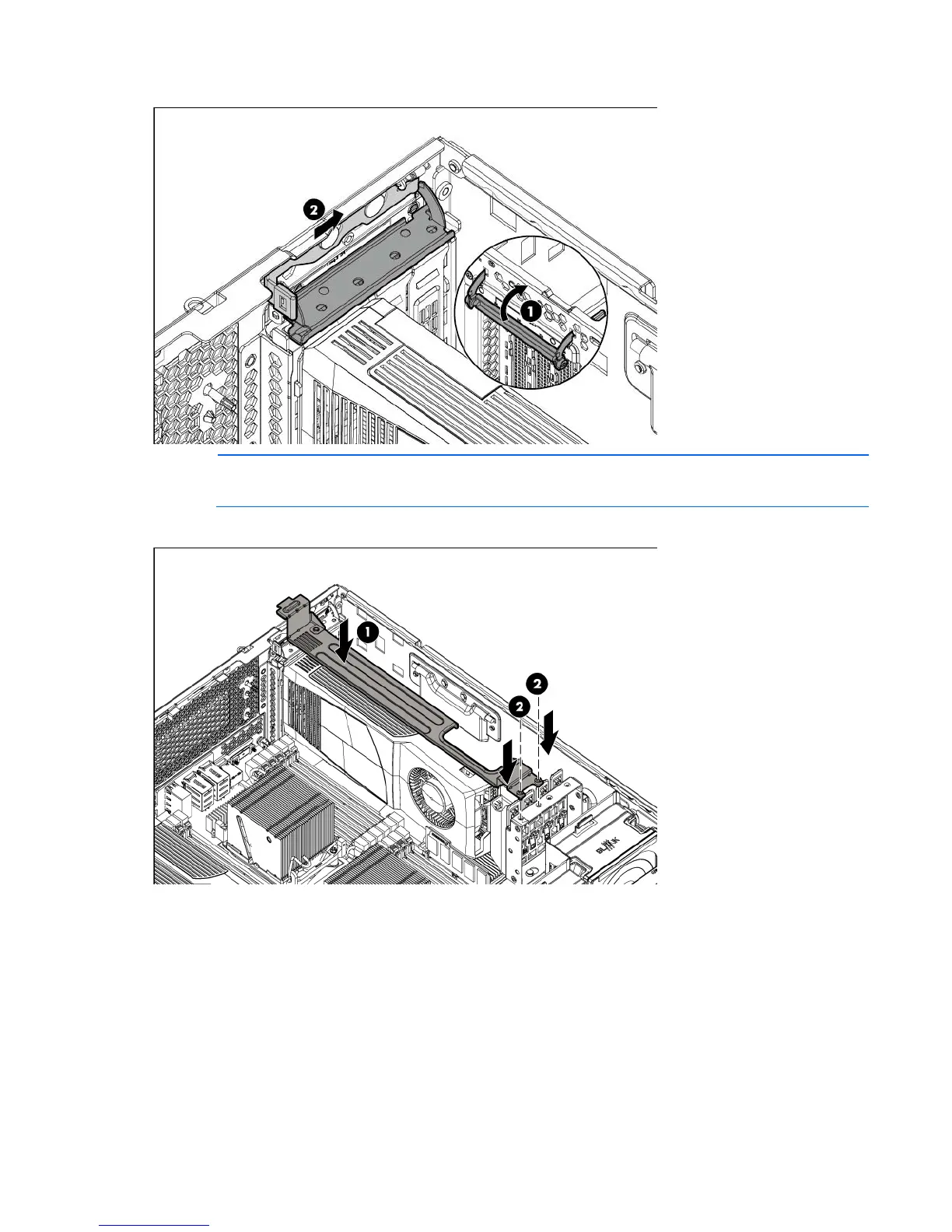

Close the PCIe retainer latch.
NOTE: Install the graphic card bracket only if you have installed a double-width graphic card.
14. Install the graphic card bracket, and then tighten the screws.
15. Install the fan cage.
16. Install the air baffle (on page 26).
17. Install the access panel (on page 24).
18. Do one of the following:
o For tower models, return the server to an upright position.
o For rack models, slide the server back into the rack.
19. Connect each power cord to the server.
20. Connect each power cord to the power source.
