3. Installation
3.2 Battery module connection
This operation must be performed when the UPS is switched o and unplugged from the AC source. In addition, do not
disconnect the connector while the unit is operating from the AC source or in reserve mode.
Note: Before starting the UPS, connect the internal battery. A small amount of arcing may occur when connecting the
batteries.This is normal and does not damage the UPS or present any safety concern.
A
C
B
Installing the new battery module
Perform the removal instructions in reverse order.
● To ensure safety and high performance, only use batteries supplied by HP.
● Take care to firmly press together the two parts of the connector during remounting.

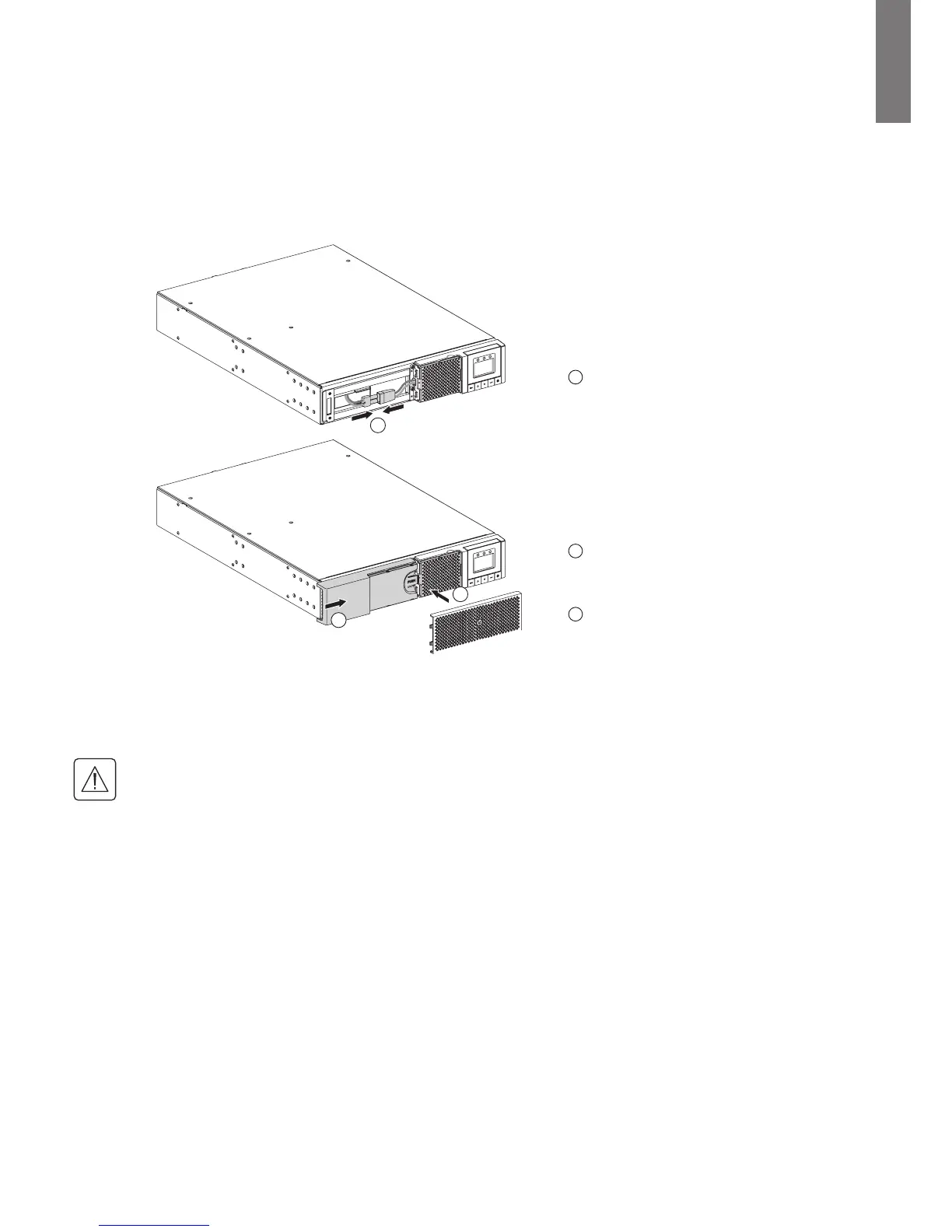

A
Connect the battery module.
Never pull on the wires.
B
Slide the left-hand side of the bezel to
the right. Ensure that the push button
locks.
C
Attach the center panel.
