Installing the UPS
Before installing the UPS, review and observe all warnings in "Precautions (on page 11)."
WARNING: A risk of personal injury or damage to the equipment exists. Uneven loading of
equipment in the rack might cause the rack to become unstable. Install the heavier components
first, and then continue to populate the rack from the bottom to the top.
1. Install the mounting rails ("Installing the mounting rails" on page 12).
2. With one person on each side of the carton, lift the chassis and lower it to the floor in front of the rack.

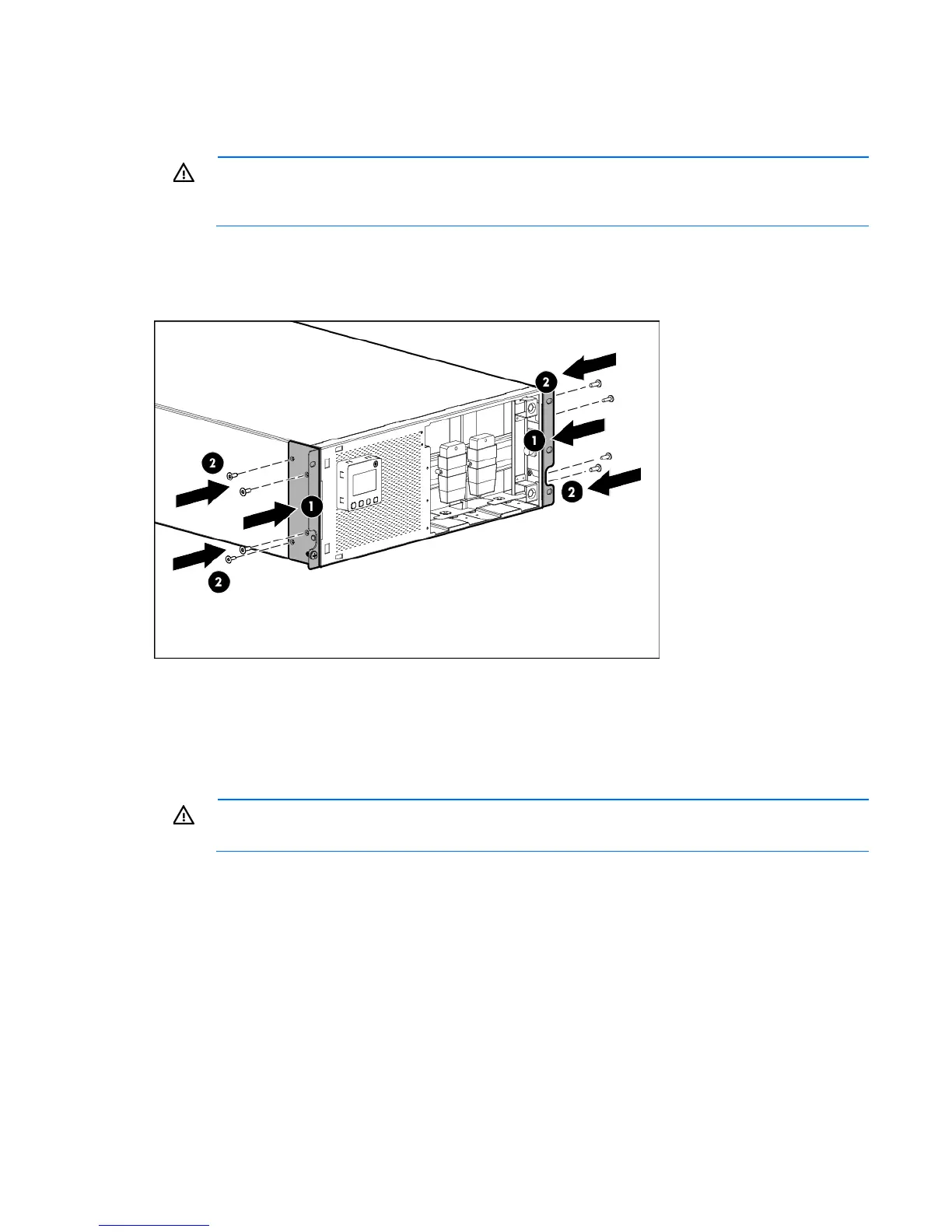

3. Install the mounting ears on the chassis using the screws provided.
4. With one person on each side, lift the chassis to rail level and slide the chassis on the mounting rails. Be
sure that the cleat brackets slide into the channels on the rear mounting brackets.
5. Attach the chassis to the rack using the supplied screws.
Connecting the battery leads
WARNING:
To prevent personal injury from electric shock or damage to the equipment, remove
the battery lead labels before connecting the battery leads.
