Installing Lifting Hooks
The lifting hooks are not meant for permanent
installation, as they interfere with side panels
on top. Once used, they should be removed.
Contents
4 Lifting hooks
67(3
Remove side panels.
Remove the top side-panels on both sides of
the rack.
67(3
Locate bolts.
Locate the bolts at the tops of the columns that
connect the top to the columns. The correct
bolts are positioned on the side of the columns
facing away from the rack.
67(3

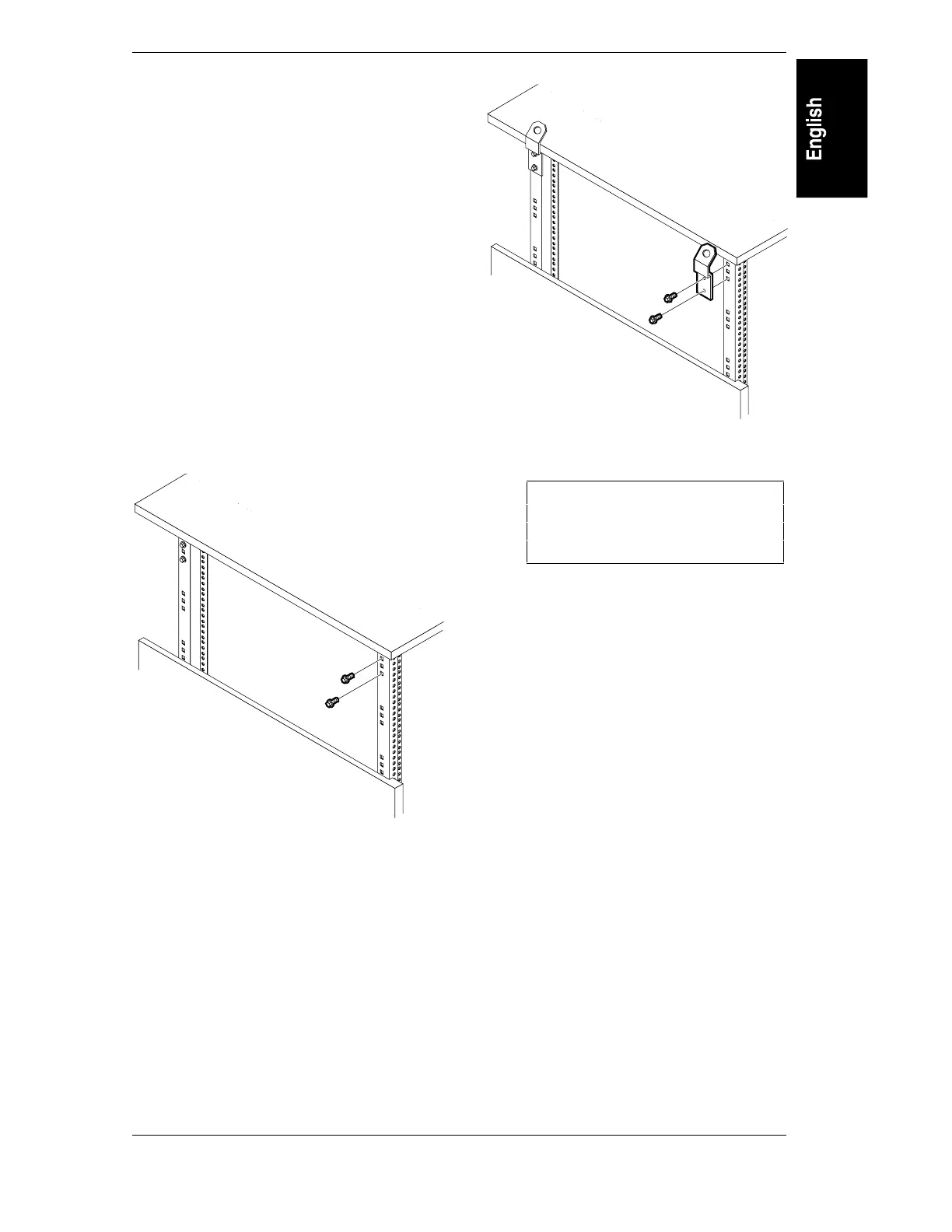

Remove bolts and attach hooks.
One column at a time, remove the two bolts,
position the lifting hook, and bolt the lifting
hook to the rack. Don’t remove more than two
bolts at a time.
67(3
Lift rack.
CAUTION Use all four hooks to
lift the rack. Do not
exceed 547lb per
hook.
67(3
Remove the lifting hooks.
Once the rack has been moved, remove the
lifting hooks, replace the bolts and replace the
side panels. Installation complete.
