3.

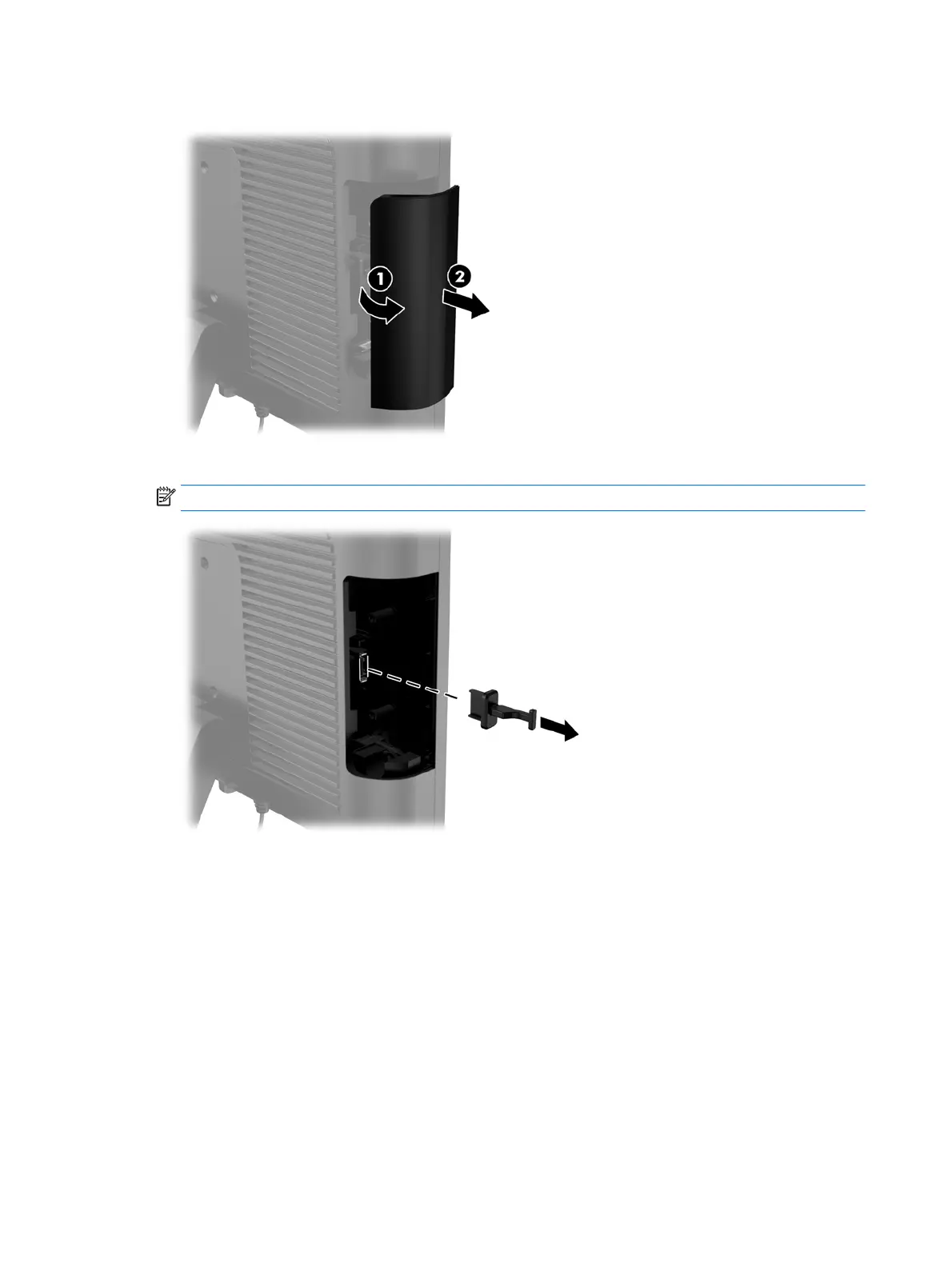

Pry off the bottom
part of the USB cover plate
(1
) and then pull the cove
r
plate off the unit (2).
4.
Pull the plug that is inserted
in the USB port out of the port.
NOTE:
Some models do not have plugs in the
USB ports.
28
Chapter 5 Removal and r
eplacement procedures
35
37
Table of Contents
Table of Contents
5
Product Overview
9
Product Models
9
Standard Features
9
Rear Components
11
Connecting a Serial Device
12
Installing and Customizing the Software
13
Installing the Windows Operating System
13
Installing or Upgrading Device Drivers (Windows Systems)
13
Customizing the Monitor Display (Windows Systems)
13
Downloading Microsoft Windows Updates
14
Accessing Disk Image (ISO) Files
14
Illustrated Parts Catalog
15
Computer Major Components
15
Optional Displays and USB Devices
16
Cables
17
Misc Parts
18
Plastic Parts
19
Routine Care, SATA Drive Guidelines, and Disassembly Preparation
20
Electrostatic Discharge Information
20
Generating Static
20
Preventing Electrostatic Damage to Equipment
21
Personal Grounding Methods and Equipment
21
Grounding the Work Area
21
Recommended Materials and Equipment
22
Operating Guidelines
22
Routine Care
23
General Cleaning Safety Precautions
23
Cleaning the Computer Case
23
Cleaning the Monitor
23
Service Considerations
23
Power Supply Fan
23
Tools and Software Requirements
24
Screws
24
Cables and Connectors
24
Hard Drives
24
Lithium Coin Cell Battery
25
SATA Hard Drives
25
SATA Hard Drive Cables
25
SATA Data Cable
25
SMART ATA Drives
25
Cable Management
26
Removal and Replacement Procedures
27
Preparation for Disassembly
27
Mounting the RP2 to a Wall, Swing Arm, or Pole-Mounted Bracket
28
Routing Cables to External Devices
29
Stand Feet
31
Power Supply
32
Optional HP Integrated USB Peripheral Modules
35
Front Panel
39
Memory
42
Ddr3-Sdram Sodimm
42
Replacing the SODIMM
42
Hard Drive
44
Battery
46
WLAN Module
48
Drive Connector and Cables
50
Power Button Board
51
USB Port Assembly
52
Speakers
55
Touch Board
57
Antennas and Transceivers
58
System Board
60
System Board Callouts
64
Display Panel Assembly
65
Configuring the Software
66
Touch Screen Calibration
66
Calibration for Windows 7 Professional and Embedded Posready 7
66
Calibration for Windows 8.1 Professional and Embedded 8.1 Industry Pro Retail
66
Configuring the MSR
66
Configuring Powered Serial Ports
67
Computer Setup (F10) Utility
68
Computer Setup (F10) Utilities
68
Using Computer Setup (F10) Utilities
68
Computer Setup-File
70
Computer Setup-Storage
71
Computer Setup-Security
72
Computer Setup-Power
74
Computer Setup-Advanced
75
POST Error Messages
77
POST Numeric Codes and Text Messages
77
Interpreting POST Diagnostic Front Panel Leds and Audible Codes
81
Password Security and Resetting CMOS
84
Resetting the Password Jumper
84
Changing a Setup or Power-On Password
85
Deleting a Setup or Power-On Password
86
Clearing and Resetting the CMOS
86
10 HP PC Hardware Diagnostics
88
Why Run HP PC Hardware Diagnostics
88
How to Access and Run HP PC Hardware Diagnostics
88
Downloading HP PC Hardware Diagnostics (UEFI) to a USB Device
88
11 System Backup and Recovery
90
Backing Up, Restoring, and Recovering in Windows 8.1, Windows 8, or Industry 8.1
90
Creating Recovery Media and Backups
90
Restoring and Recovering Using Windows Tools
90
Using Reset When the System Is Not Responding
91
Recovery Using the Windows Recovery USB Flash Drive
91
Recovery Using Windows Operating System Media (Purchased Separately)
92
Backing Up, Restoring, and Recovering in Windows 7 and Posready 7
93
Creating Recovery Media
93
Creating Recovery Media Using HP Recovery Manager (Select Models Only)
93
Creating Recovery Discs with HP Recovery Disc Creator (Select Models Only)
94
Creating Recovery Discs
94
Backing up Your Information
95
System Restore
95
System Recovery
96
System Recovery When Windows Is Responding
96
System Recovery When Windows Is Not Responding
97
System Recovery Using Recovery Media (Select Models Only)
97
Using HP Recovery Disc Operating System Discs (Select Models Only)
98
Appendix A Power Cord Set Requirements
100
General Requirements
100
Japanese Power Cord Requirements
100
Country-Specific Requirements
101
Appendix B Specifications
102
Index
103
