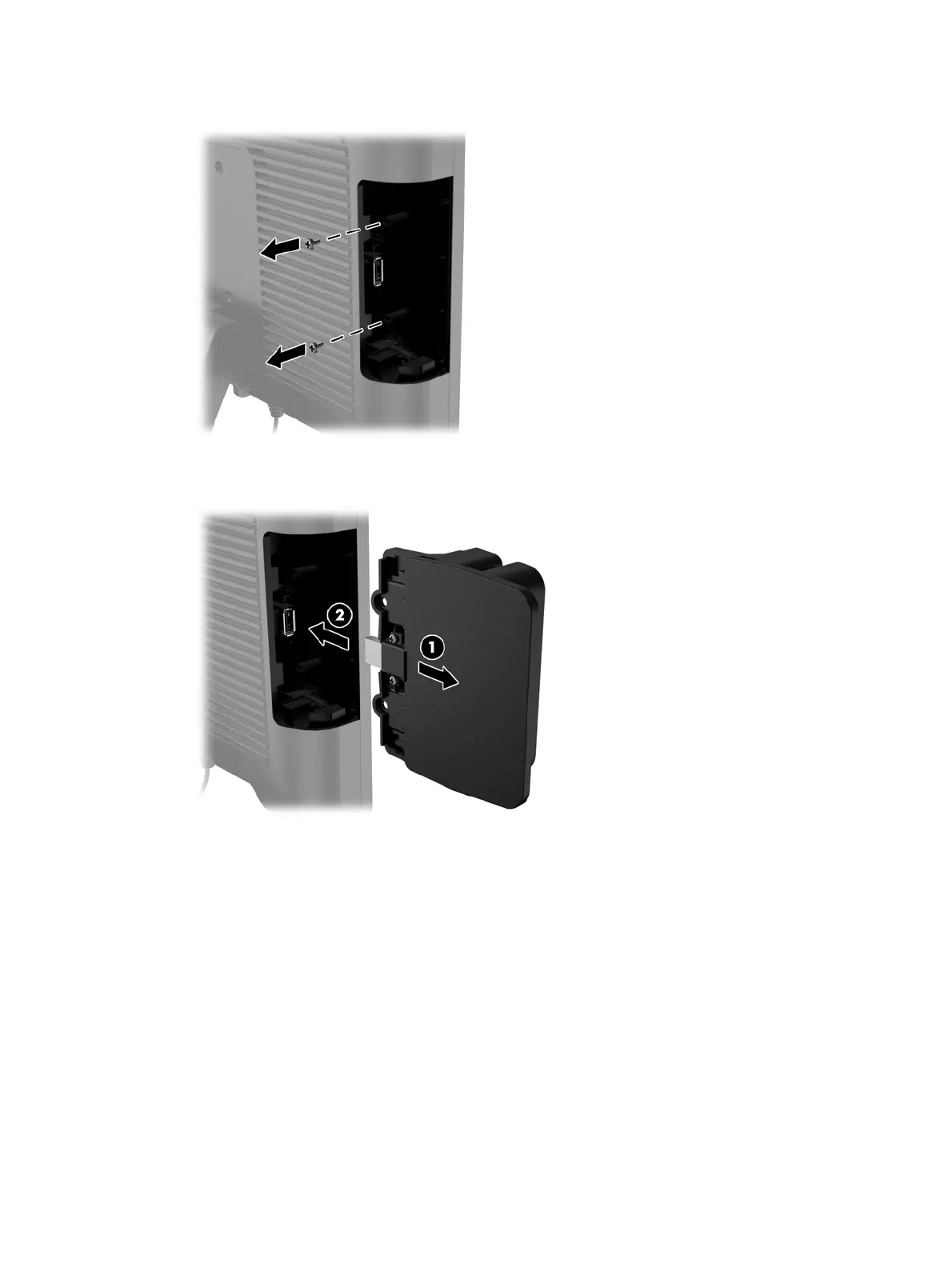

5. Remove the two screws next to the USB port. The screws are needed to install the USB module.

6. Slide the screw hole cover plate on the module back (1) and insert the USB connector on the module into

the USB port (2).

Optional HP integrated USB peripheral modules 29
