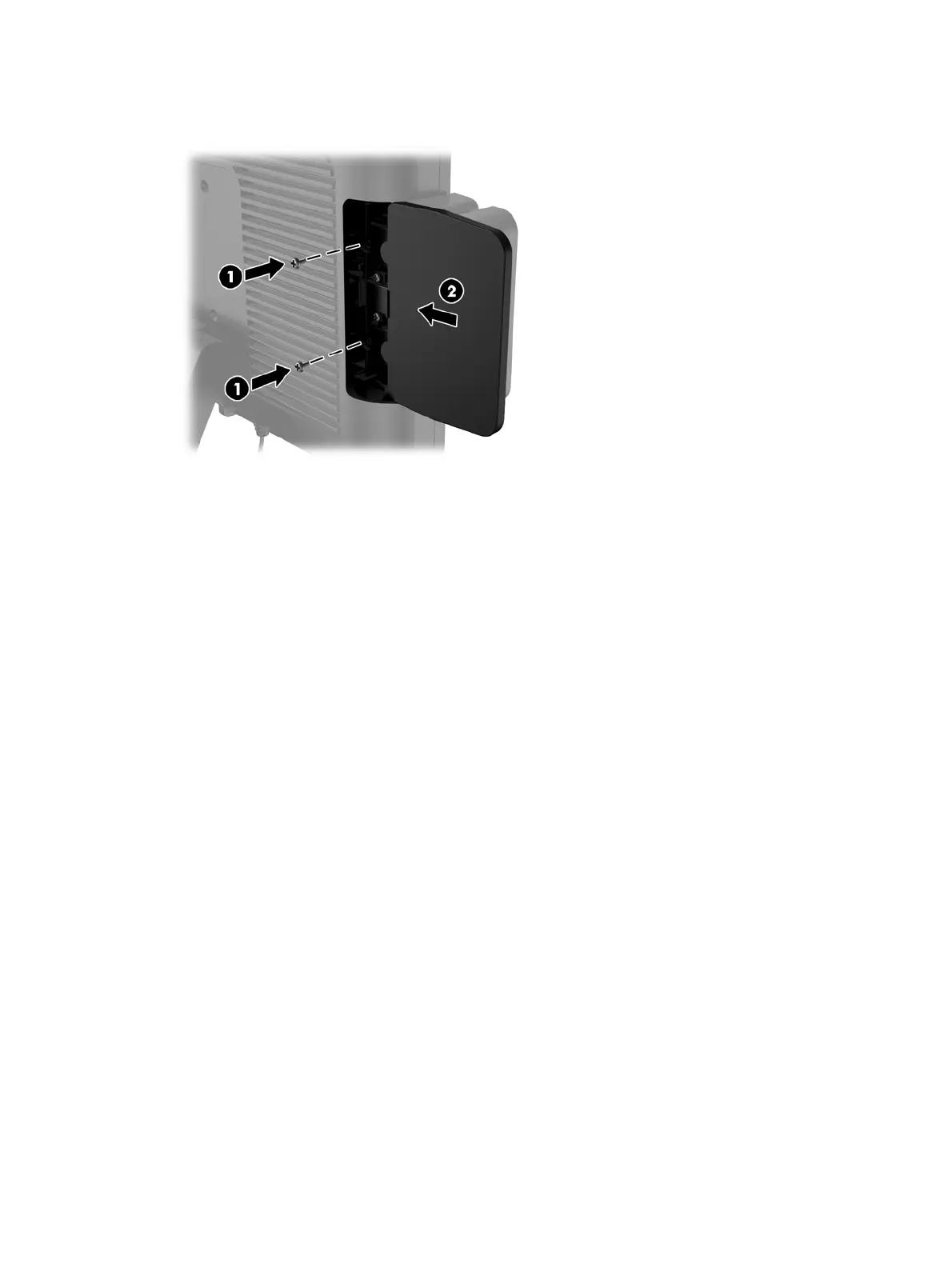

7. Install the two screws that were previously removed (1) and slide the cover plate on the module

forward to cover the screws (2).

8. Reconnect the power cord and press the power button.

30 Chapter 5 Removal and replacement procedures
